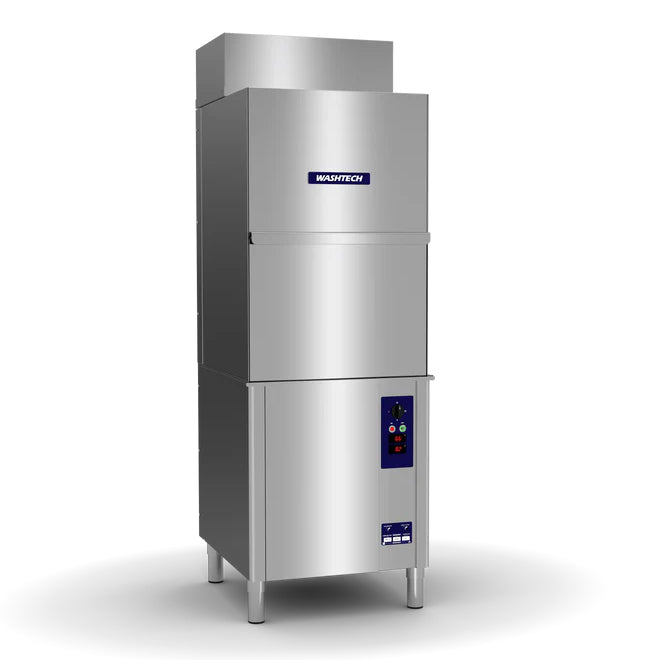

Washtech Front Loading Warewasher with Heat Recovery Unit - 500mm x 600mm Rack - PW1C

Washtech warewashers are built to improve the efficiency of operations washing oversized and/or heavily soiled items, from bakeries to production kitchens, supermarkets to hospitals. This is achieved with a continuous and consistent wash process throughout the day that is easy on your staff. With highly efficient water consumption rates, Washtech warewashers are also light on the environment and operating costs.

The PW1C is a powerful, highly durable, simple-to-use and easy-to-maintain front load warewasher. It features Washtech Hybrid Controls which combine IP65 stainless switches, tried-and-tested switchgear, with a customisable electronic timer. Built with a large wash chamber and carefully counterbalanced split door, the PW1C is ideal for washing baking and GN trays, bins, bowls and other oversized items.

The PW1C also features a highly efficient heat recovery unit which ensures minimal energy consumption and steam emissions, for even lighter operating costs and an improved working environment.

Standard Product Features

• Suitable for installation without an extraction canopy in many situations*
• Integrated heat recovery unit which preheats the cold water supply, significantly reducing steam emissions, energy consumption and water treatment cost
• Internal upper rail with optional and adjustable tines suited for hanging ladles, whisks and/or washing up to 10 baking or GN trays (up to 40mm deep) per cycle
• Versatile 2.5, 4.5 and 6.5 minute wash cycles
• Large internal wash chamber with useable area of W 565mm x D 600mm x H 750mm
• Low cold water consumption of 2.6 litres per cycle
• Washtech Hybrid Controls
• Easy Installation supplied with:
• Water supply hose
• Detergent and rinse aid pumps with injector lines
• No commissioning required
• High powered wash system
• Suitable for connection to low inlet water temperature and/or pressure (break tank and rinse pump fitted)
• Heavy-duty stainless steel construction and wash manifold
• Robust stainless steel wash and rinse arms with precision stainless steel jets
• Double heavy duty stainless steel filtration system including dual scrap trays and separate wash inlet filter
• Wash chamber easily accessible via insulated counter-sprung split door
• Watermark approved backflow prevention
• Comprehensive Moffat 5-2-1 warranty

Inclusions

• 1 x 500mm x 600mm dish rack (600 70042)
• 1 x 500mm x 600mm cup rack (600 70043)
• 1 x cutlery basket (C660508)
• 1 x 435mm cup cover (k0452)
• 1 x Upper hanging rail with adjustable tines (824 10228)

Product Specifications

• Made in New Zealand
• W 680mm x D 780mm x H 2065mm
• Warranty 5 Years (Cabinet) 2 Years (Wash Pump) & 1 Year Parts & Labour
• Packed Weight 209kg
• Electrical requirements:
  400V, 3P+N+E, 50Hz, 25amp, 18.0kW
  option: 400V, 3P+N+E, 50Hz, 15amp, 10.5kW
