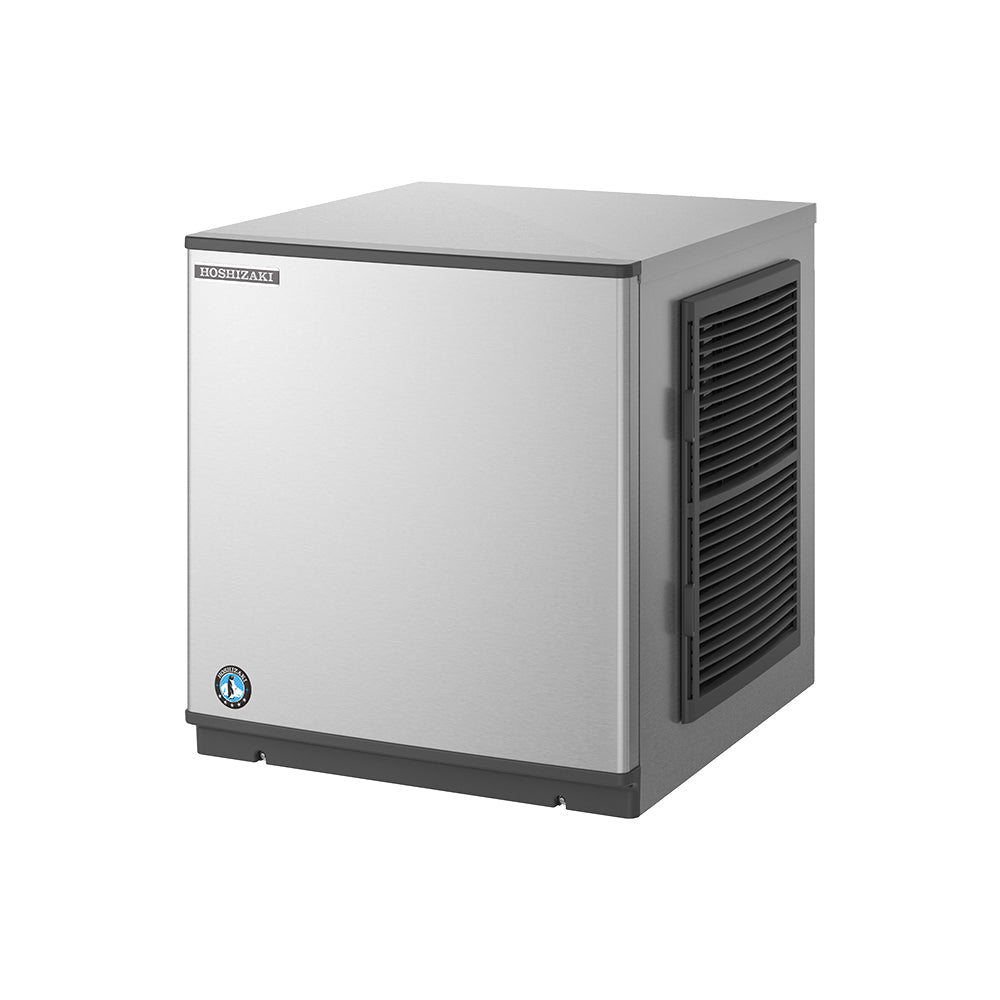

Hoshizaki Modular Crescent Ice Machine 200kg/day - KMD-201AB (SS)

The Hoshizaki KMD-201AB (SS) Modular Crescent Ice Machine Head is a high-performance ice maker designed for commercial use. With a production capacity of up to 200kg of ice per day, this machine is ideal for large restaurants, bars, and other food service establishments.

Featuring Hoshizaki's signature crescent-shaped ice, the KMD-201AB (SS) produces clear, hard, and slow-melting ice cubes that are perfect for a wide range of applications. The machine's stainless steel exterior is both durable and attractive, making it an excellent addition to any commercial kitchen.

The KMD-201AB (SS) is designed for easy installation and maintenance. The machine's air-cooled condenser and front-facing evaporator make it easy to access and clean, while the unit's removable air filter helps to keep the machine running efficiently.

With its advanced control system, the KMD-201AB (SS) allows for precise ice thickness control, ensuring that you get the perfect amount of ice every time. The machine's diagnostic system also alerts you to any potential issues, so you can address them quickly and prevent downtime.

Overall, the Hoshizaki KMD-201AB (SS) Modular Crescent Ice Machine Head is an excellent choice for commercial kitchens that require a reliable, high-performance ice maker. With its advanced features, ease of use, and attractive design, this machine is sure to meet your needs and exceed your expectations.

Product Features

• Individual premium crescent cube with no ice bridging.
• Exceptionally hard crystal clear cubes that melt slowly.
• Durable stainless steel exterior.
• Slide in air filter for easy cleaning – maintaining performance efficiency.
• Patented double sided stainless steel evaporator for all water conditions – produces more ice in fewer cycles.
• Audible alarms.

Product Specifications

• Freeze Cycle Time: Approx. 30.5(AT. 21 ·c, WT. 15°C)
• Ice Production Per Cycle: Approx. 3.7 kg / 416pcs(AT. 21’C, WT. 15’C)
• Dimensions: 560mm (W) x 625mm (D) x 610mm (H) (Not incl.Bin Sw)
• Cooling: Air
• Weight Net: 57kg
• Packed Weight: 73kg
• AC Supply Voltage: 1 PHASE 220-240/230V 50/60 Hz
• Amperage Running: 3.0/3.6A Starting: 25/25A
• Refrigerant Charge: R404A / 520g

Production Capacity per 24 hours

• Approx. 200 kg @10°C Air temp; 10°C Water
• Approx. 175 kg @21°C Air temp; 15°C Water
• Approx.140 kg @ 32°C Air temp; 21°C Water

Operating Conditions

• Ambient Temp.: 7-40°C
• Water Supply Temp.: 7-35°C
• Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
• Voltage Range: ±6%

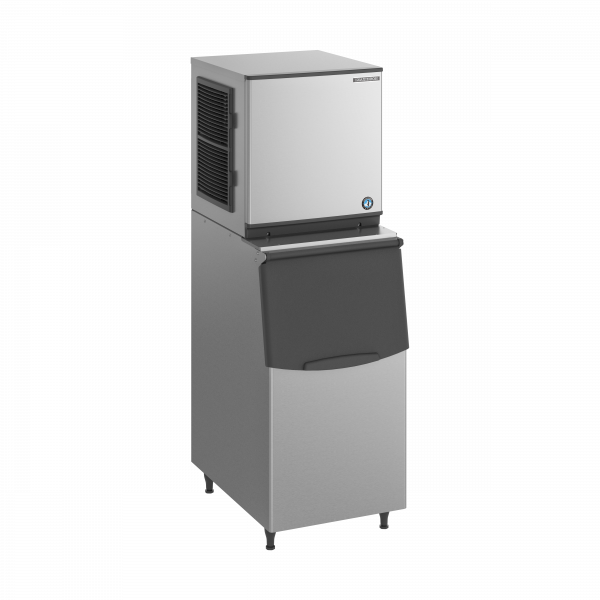

Max Storage Capacity

• 91000025 144kg Ice Storage Bin
• 91000026 217kg Ice Storage Bin
• 91000027 348kg Ice Storage Bin
• 91000053 578kg Ice Storage Bin
• 91000130 Hotel Dispenser
• 91000100 Hotel/Motel Ice Dispenser
• 91000063 90kg Worksite Dispenser
• 91000131 90kg Worksite H2O Dispenser

Additional Parts

• 96000006 18D Top Kit
• 96000007 8D Top Kit
• 96000008 4DM Top Kit
• 64000088 DB200H/KMD Top Kit
• 96000009 4DR Top Kit
• 87000123 Water Filter Kit Twin 450mm cartridges

• 87000107 450mm Replacement Cartridge
• 87000149 Water Filter System & Guage
• Sauermann External Drain Pump for Hoshizaki Ice Makers - NI82
• 81000116 Stainless Steel Hose
• 95001013 Adjustable Leg

Warranty

• 3 years Parts and Labour on the entire unit
• 5 years (parts and labour) on evaporator
• 5 years (parts only) compressor and air cooled condenser coil
• Get an additional 6 months when registering an Ice Machine

Product Resources

• Spec Sheet
