Product Description

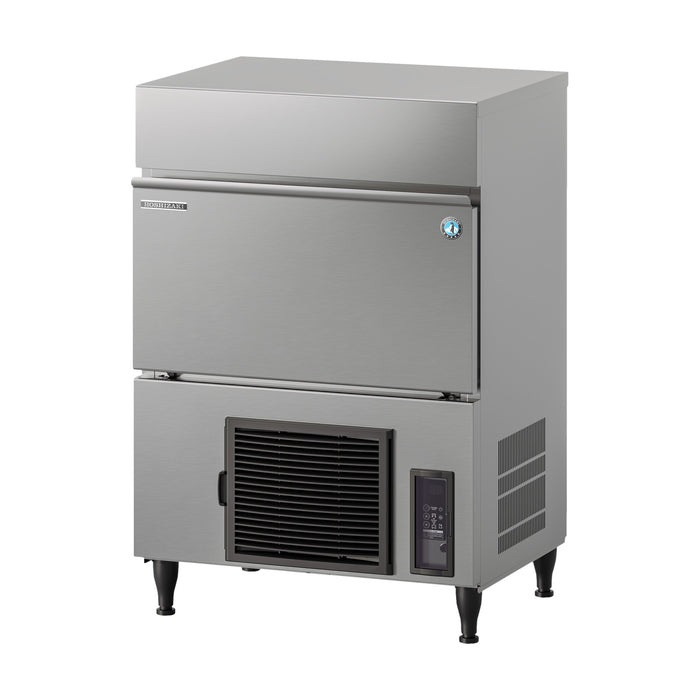

The Hoshizaki IM-65PE-28-F is a self-contained cube ice machine with an integrated drain pump from the new-generation IM CUBE range. It makes up to 55kg of Hoshizaki's hard, slowly melting cubes every 24 hours and holds approx. 26kg in its bin.
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Product Features
- Sustainable & Efficient: Uses R290 natural refrigerant and a variable-speed magnetic DC pump motor to reduce energy and water consumption. A stand-by function and high-grade insulation further improve efficiency.
- Durable & Hygienic Construction: A closed water circuit helps protect ice from contamination, while food-grade stainless steel (AISI 430) components ensure durability and hygiene. An optional scoop holder kit supports cleaner ice handling.
- Advanced Technology: Features smart water flow technology that adjusts during each ice-making phase, producing clearer cubes. The closed cell system forms individual cubes for consistent ice quality.
- Smart & Long-Lasting Design: Includes automated cleaning, cleaning notifications for the water circuit and condenser, and an adjustable control panel for easy operation and maintenance.
- Compact & Space-Saving: An integrated drain pump allows flexible installation, enabling drainage up to 10 m horizontally and 1.5 m vertically.
- Plug & Play Installation: Designed for convenience with removable components such as the water tank and DC pump, making installation and servicing quick and easy.
Product Specifications

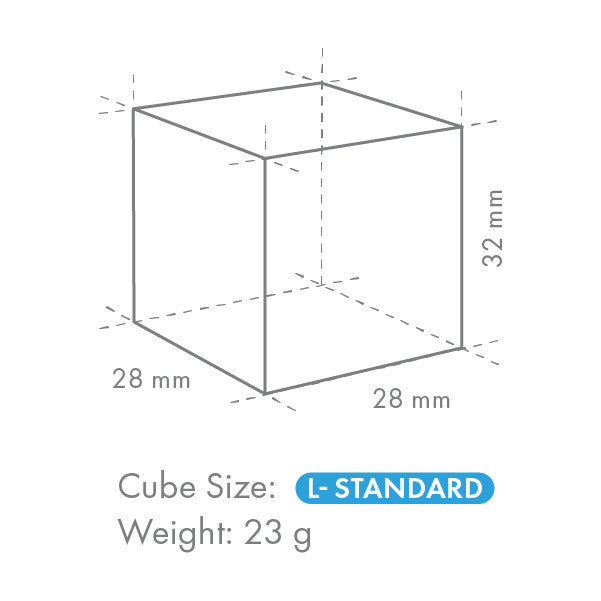

- Ice Size: 28mm x 28mm x 32mm cube (L-Standard), approx. 23g
- Drain Pump: Integrated
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
-
Production Capacity per 24 Hours: Approx. 55kg @10°C Air temp; 10°C Water
Approx. 48kg @ 21°C Air temp; 15°C Water
Approx. 39kg @ 32°C Air temp; 21°C Water - Max Storage Capacity: Approx. 26kg (Bin Control Setting Approx. 18kg)
- Dimensions: 633mm W x 506mm D x 930mm H (840mm without legs)
- Weight Net: 49kg
- Packed Weight: 59kg
- Cooling: Air
- AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 10 AMP Plug
- Amperage: Running: 2.1A Rated Motor: 2.1A Starting: 11A
- Refrigerant Charge: R290 / 110g
-
Operating Conditions: Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar)
Voltage Range: Rated Voltage ±6% - Electric Consumption: 290W
-
Water Consumption Per 24h: Approx. 0.43m³ @10°C Air temp; 10°C Water
Approx. 0.12m³ @ 21°C Air temp; 15°C Water
Approx. 0.10m³ @ 32°C Air temp; 21°C Water - Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 830W
- Accessories Included: Installation kit, Legs, Scoop
- Package Carton (W x D x H): 735mm x 570mm x 1012mm
- GEMS Number: AIM0010
- Hoshizaki Item Number: 91000162
Additional Parts
- 87000148 HLF10G Water Filter Kit & Gauge
- 87000104 HLF10 Low capacity Water Filter System
- 87000106 HLFC100 320mm Replacement Cartridge
- 87000146 HLFC111 Water Filter
- 81000116 Stainless Steel Hose
Downloads
Warranty
- 3 years parts and labour on the entire unit
- 5 years parts and labour on the evaporator
- 5 years parts only on the compressor and air cooled condenser coil
- An extra 6 months when the ice machine is registered online with Hoshizaki within 4 weeks of purchase
