Product Description

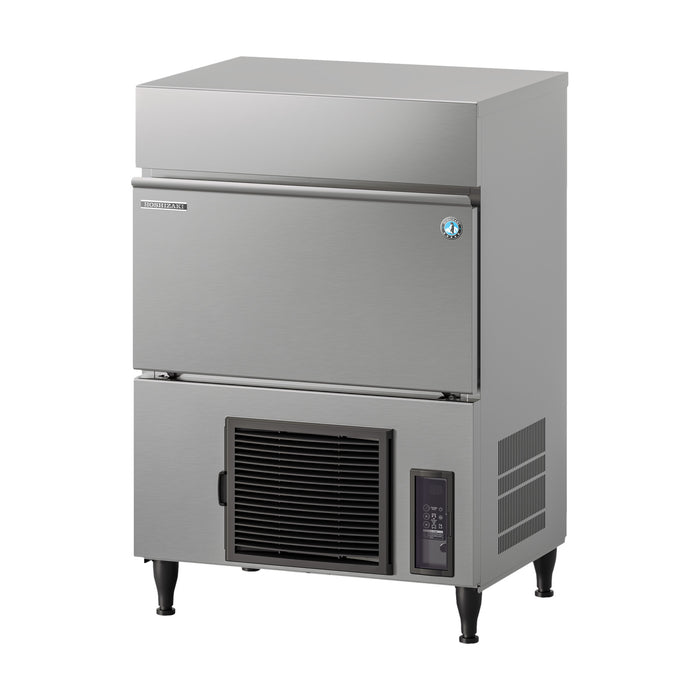

The Hoshizaki IM-65PE-28 is a self-contained cube ice machine from the new-generation IM CUBE range. It makes up to 55kg of Hoshizaki's hard, slowly melting cubes every 24 hours and holds approx. 26kg in its bin.
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Product Features
- Sustainable & Efficient: A variable-speed magnetic DC pump motor improves energy and water efficiency throughout the ice-making cycle. The unit also uses R290 natural refrigerant, a standby mode, and high-grade foamed insulation to reduce environmental impact and operating costs.
- Durable & Hygienic Construction: A closed water circuit protects the cubing process from contamination, ensuring hygienic ice production. Food-grade stainless steel (AISI 430) components provide long-lasting durability, with an optional scoop holder kit for improved sanitation.
- Advanced Technology: A smart pump motor automatically adjusts water flow during each stage of production to help prevent chipped or cloudy ice. The closed cell system forms each cube individually for consistent, high-quality ice.
- Smart & Long-Lasting Design: Automated cleaning, water circuit and condenser cleaning alerts, and removable water tank and DC pump simplify maintenance and support long-term reliability.
- Compact & Space-Saving: A built-in drain pump allows flexible installation with drainage up to 10 m horizontally and 1.5 m vertically, making it ideal for tight kitchen or bar spaces.
- Plug & Play Installation: A user-friendly control panel allows quick setup and easy adjustment of ice cube dimple size for simple operation.
Product Specifications

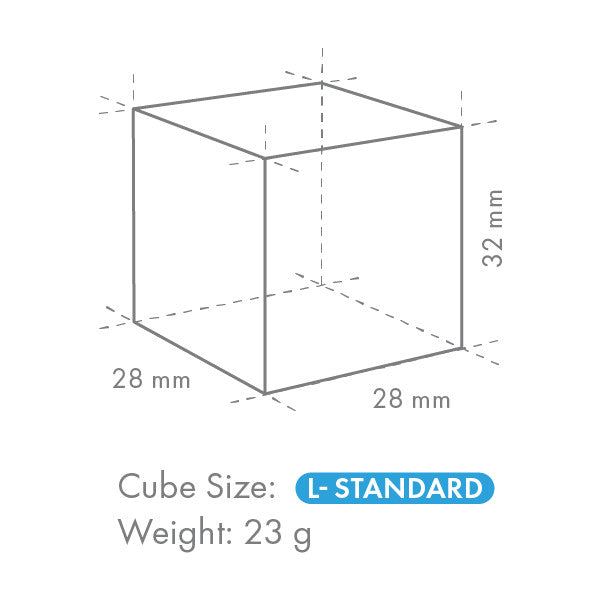

- Ice Size: 28mm x 28mm x 32mm cube (L-Standard), approx. 23g
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
-
Production Capacity per 24 Hours: Approx. 55kg @10°C Air temp; 10°C Water
Approx. 48kg @ 21°C Air temp; 15°C Water
Approx. 39kg @ 32°C Air temp; 21°C Water - Max Storage Capacity: Approx. 26kg (Bin Control Setting Approx. 18kg)
- Dimensions: 633mm W x 506mm D x 930mm H (840mm without legs)
- Weight Net: 48kg
- Packed Weight: 58kg
- Cooling: Air
- AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 10 AMP Plug
- Amperage: Running: 2.1A Rated Motor: 2.1A Starting: 11A
- Refrigerant Charge: R290 / 110g
-
Operating Conditions: Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar)
Voltage Range: Rated Voltage ±6% - Electric Consumption: 290W
-
Water Consumption Per 24h: Approx. 0.43m³ @10°C Air temp; 10°C Water
Approx. 0.12m³ @ 21°C Air temp; 15°C Water
Approx. 0.10m³ @ 32°C Air temp; 21°C Water - Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 830W
- Accessories Included: Installation kit, Legs, Scoop
- Package Carton (W x D x H): 735mm x 570mm x 1012mm
- GEMS Number: AIM0010
- Hoshizaki Item Number: 91000161
Additional Parts
- 87000148 HLF10G Water Filter Kit & Gauge
- 87000104 HLF10 Low capacity Water Filter System
- 87000106 HLFC100 320mm Replacement Cartridge
- 87000146 HLFC111 Water Filter
- 81000116 Stainless Steel Hose
Downloads
Warranty
- 3 years parts and labour on the entire unit
- 5 years parts and labour on the evaporator
- 5 years parts only on the compressor and air cooled condenser coil
- An extra 6 months when the ice machine is registered online with Hoshizaki within 4 weeks of purchase
