Product Description

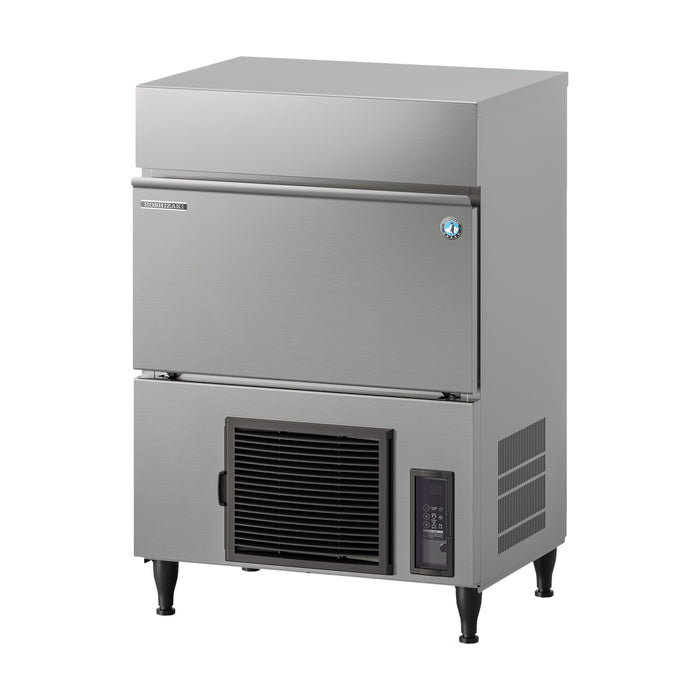

The Hoshizaki IM-65PE-25-F is a self-contained cube ice machine with an integrated drain pump from the new-generation IM CUBE range. It makes up to 53kg of Hoshizaki's hard, slowly melting cubes every 24 hours and holds approx. 26kg in its bin.
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Product Features
- Sustainable & Efficient: Designed for efficiency, this model features a variable-speed magnetic DC pump motor and environmentally friendly R290 natural refrigerant. Combined with high-grade foamed insulation and a standby function, it helps reduce both energy and water consumption.
- Durable & Hygienic Construction: Built with food-grade stainless steel components (AISI 430) and a closed water circuit, the machine protects the ice-making process from contamination. The closed cell system ensures clean, consistently formed ice cubes.
- Advanced Technology: Smart water flow technology adjusts pump speed throughout the ice-making cycle to improve performance and prevent chipped or cloudy cubes. A simple control panel allows easy adjustment of ice cube dimple size.
- Smart & Long-Lasting Design: Automated cleaning and maintenance notifications help keep the machine running efficiently. Key components like the water tank and DC pump are easily removable for quick servicing.
- Compact & Space-Saving: The compact FlexiCUBE design allows the unit to fit easily into tight kitchen or bar spaces without sacrificing ice production capacity.
- Plug & Play Installation: An integrated drain pump allows flexible installation up to 10 metres from the drain and 1.5 metres in height, making setup quick and convenient.
Product Specifications

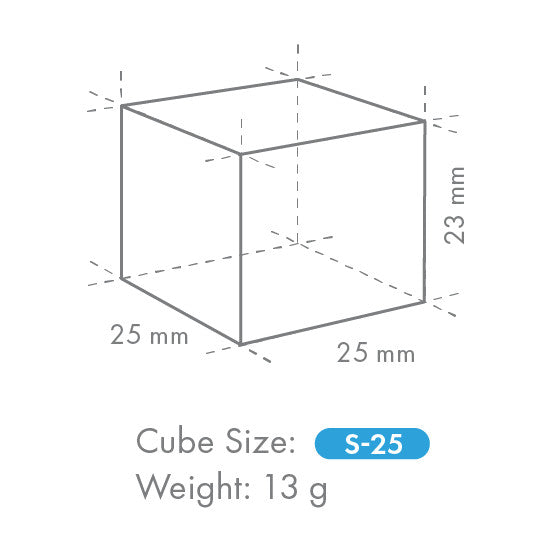

- Ice Size: 25mm x 25mm x 23mm cube (S-25), approx. 13g
- Drain Pump: Integrated
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
-
Production Capacity per 24 Hours: Approx. 53kg @10°C Air temp; 10°C Water
Approx. 46kg @ 21°C Air temp; 15°C Water
Approx. 37kg @ 32°C Air temp; 21°C Water - Max Storage Capacity: Approx. 26kg (Bin Control Setting Approx. 18kg)
- Dimensions: 633mm W x 506mm D x 930mm H (840mm without legs)
- Weight Net: 49kg
- Packed Weight: 59kg
- Cooling: Air
- AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 10 AMP Plug
- Amperage: Running: 2.1A Rated Motor: 2.1A Starting: 11A
- Refrigerant Charge: R290 / 110g
-
Operating Conditions: Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar)
Voltage Range: Rated Voltage ±6% - Electric Consumption: 305W
-
Water Consumption Per 24h: Approx. 0.22m³ @10°C Air temp; 10°C Water
Approx. 0.14m³ @ 21°C Air temp; 15°C Water
Approx. 0.11m³ @ 32°C Air temp; 21°C Water - Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 830W
- Accessories Included: Installation kit, Legs, Scoop
- Package Carton (W x D x H): 735mm x 570mm x 1012mm
- GEMS Number: AIM0009
- Hoshizaki Item Number: 91000160
Additional Parts
- 87000148 HLF10G Water Filter Kit & Gauge
- 87000104 HLF10 Low capacity Water Filter System
- 87000106 HLFC100 320mm Replacement Cartridge
- 87000146 HLFC111 Water Filter
- 81000116 Stainless Steel Hose
Downloads
Warranty
- 3 years parts and labour on the entire unit
- 5 years parts and labour on the evaporator
- 5 years parts only on the compressor and air cooled condenser coil
- An extra 6 months when the ice machine is registered online with Hoshizaki within 4 weeks of purchase
