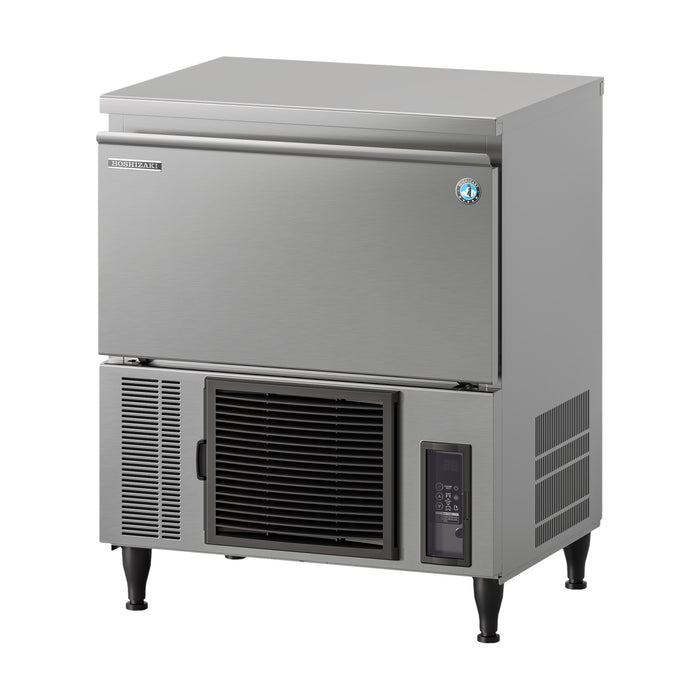

Hoshizaki Self-Contained Cube Ice Machine 34kg/day with Drain Pump - IM-45CPE-25-F
The driver unloads at your kerb, loading bay or dock; anything over 20 kg arrives on a pallet. It does not include moving goods inside, or up or down stairs or ramps.
A priority service: the same goods, packed the same way, moving on the faster network. The estimate above runs from dispatch, not from checkout — and rural or remote addresses take longer than metro. Everything the standard service includes about where the driver leaves it applies here too.
Inside your premises, a set day or time, or pallet and rubbish removal. The price shown is an estimate for a ground-floor delivery with easy access — stairs, lifts, tight entries or other obstacles cost more.Only some items are priced online for this service; most are quoted, and this one is. Use Add to quote below and we’ll confirm a price.
Held at . Stock is confirmed with the warehouse once we place your order — the figures above are a weekly snapshot, so please don’t travel until we confirm. Collection is not same day: orders are usually ready the next business day. As soon as it’s confirmed we’ll email you the address and a booking link so you can choose your collection time.
Check the item will fit your vehicle. Larger units often need a trailer or a small truck.
24-hour inspection window. Check your order on delivery and report any transit damage within 1 business day.
Claims for transit damage can only be lodged inside the first 24 hours, so telling us straight away is what lets us resolve it quickly.
Read our delivery terms →
Select SilverChef at checkout, pay nothing now.
Up to $65,000 Instant Approval.
Product Description
The Hoshizaki IM-45CPE-25-F is a self-contained cube ice machine with an integrated drain pump from the new-generation IM CUBE range. It makes up to 38kg of Hoshizaki's hard, slowly melting cubes every 24 hours and holds approx. 15kg in its bin.
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Product Features
- Sustainable & Efficient: A variable-speed magnetic DC pump motor optimises water flow during each stage of ice production, improving energy and water efficiency. The use of R290 natural refrigerant, a standby function, and high-grade foamed insulation further reduces environmental impact and operating costs.
- Durable & Hygienic Construction: A closed water circuit protects the ice-making process from contamination, ensuring high hygiene standards. Internal components are made from food-grade stainless steel (AISI 430) for durability. An optional scoop holder kit supports safe and sanitary scoop storage.
- Advanced Technology: The smart variable-speed pump motor adjusts water flow throughout the cycle to help prevent chipped or cloudy ice cubes. The closed cell system forms each cube individually, producing clear, consistent ice.
- Smart & Long-Lasting Design: Features automated cleaning, water circuit and condenser cleaning notifications, and easily removable water tank and pump to simplify maintenance and extend machine life.
- Compact & Space-Saving: The built-in drain pump allows flexible installation with drainage up to 10 m horizontally and 1.5 m vertically, making it ideal for tight kitchen or bar spaces.
- Plug & Play Installation: A simple control panel allows easy adjustment of ice cube dimple size and convenient operation for quick setup and everyday use.
Product Specifications

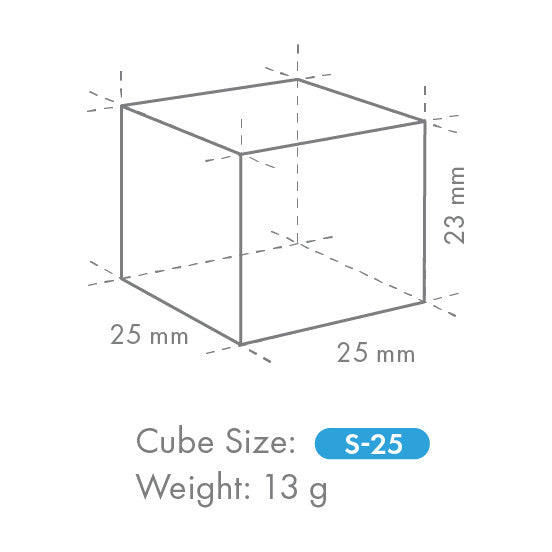

- Ice Size: 25mm x 25mm x 23mm cube (S-25), approx. 13g
- Drain Pump: Integrated
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
-
Production Capacity per 24 Hours: Approx. 38kg @10°C Air temp; 10°C Water
Approx. 34kg @ 21°C Air temp; 15°C Water
Approx. 26kg @ 32°C Air temp; 21°C Water - Max Storage Capacity: Approx. 15kg (Bin Control Setting Approx. 8kg)
- Dimensions: 633mm W x 511mm D x 780mm H
- Weight Net: 45kg
- Packed Weight: 55kg
- Cooling: Air
- AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 10 AMP Plug
- Amperage: Running: 1.6A Rated Motor: 1.6A Starting: 9A
- Refrigerant Charge: R290 / 70g
-
Operating Conditions: Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar)
Voltage Range: Rated Voltage ±6% - Electric Consumption: 245W
-
Water Consumption Per 24h: Approx. 0.20m³ @10°C Air temp; 10°C Water
Approx. 0.11m³ @ 21°C Air temp; 15°C Water
Approx. 0.09m³ @ 32°C Air temp; 21°C Water - Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 710W
- Accessories Included: Installation kit, Legs, Scoop
- Package Carton (W x D x H): 735mm x 570mm x 864mm
- GEMS Number: AIM0019
- Hoshizaki Item Number: 91000156
Additional Parts
- 87000148 HLF10G Water Filter Kit & Gauge
- 87000104 HLF10 Low capacity Water Filter System
- 87000106 HLFC100 320mm Replacement Cartridge
- 87000146 HLFC111 Water Filter
- 81000116 Stainless Steel Hose
Downloads
Warranty
- 3 years parts and labour on the entire unit
- 5 years parts and labour on the evaporator
- 5 years parts only on the compressor and air cooled condenser coil
- An extra 6 months when the ice machine is registered online with Hoshizaki within 4 weeks of purchase
