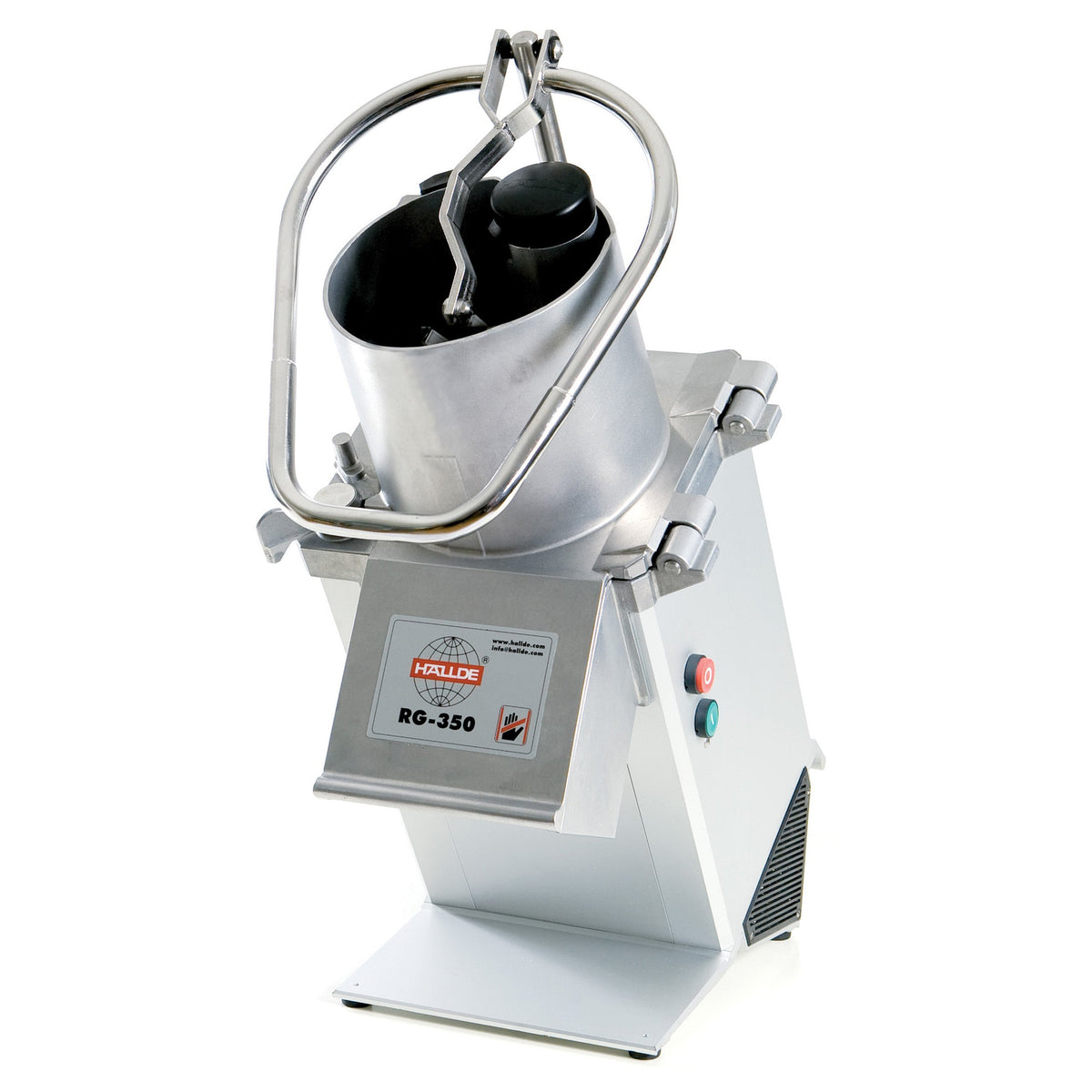

Hallde RG-350 Vegetable Preparation Machine - RG-350

Very high capacity vegetable preparation. Make more than 50 different cuts. Slice, crimp, julienne, shred/grate, dice & potato chip. Processes up to 1,200 portions/day, 12 kg/minute with the Manual Feeder and 30 kg/minute with the Feed Hopper.

Product Features

• Very high capacity vegetable preparation. Make more than 50 cuts.
• Slice, crimp, julienne, shred/grate, dice, potato chip
• Processes up to 1,200 portions/day, 12kg/minute with Manual Feeder and 30kg/minute with the Feed Hopper (sold separately)
• All metal machine housing & feed head
• 2 separate feeders for maximum efficiency:
  – Manual push feeder (included in price) with ergo loop handle (HA40881)
  – Feed hopper (purchase separately) for continuous feeding of round products (HA40871)
• Full moon-shaped feed cylinder
• Ergonomic leaning design, easy to feed
• Robust heavy duty machine
• Best used on a machine table – purchased separately
• Over 44 different heavy duty cutting tools are available
• Speed 350RPM
• Cutting tools, machine stands and trolley are not included in the machine price
• Single Phase, 240V, 50Hz 750W supplied with cord and 10 Amp plug
• RG-350-3PH (3 phase) available on application
• Cutting tools with replaceable knife blade

*Cutting tools need to purchased separately, no cutting tools are included. See available cutting tools further below.

Available Feed Attachments

Manual Push Feed Assembly includes Feed Cylinder – HA40881 (included with RG-350)

• Suitable for bulk processing of round products such as potatoes, onions, carrots etc.
• Requires RG-350 machine base to operate
• Fits single-phase or three-phase model

Continuous Feed Hopper Assembly includes Feed Cylinder – HA40871 (optional)

• Suitable for bulk processing of round products such as potatoes, onions, carrots etc.
• Requires RG-350 machine base to operate
• Fits single-phase or three-phase model

Type of preparation
Slices, dices, grates, shreds, cut julienne, crimping slices, and potato chips. Processes vegetables, fruit, dry bread, cheese, nuts, mushrooms, etc.

Users
Restaurants, shop kitchens, diet kitchens, retirement homes, hospitals, schools, fast food outlets, catering, daycare centres, pizzerias, ships, central kitchens, institution kitchens, etc.

A machine with two faces
The RG-350 is one of Hallde’s strongest and most efficient vegetable preparation machines. It has two different types of feeders – manual feeder ergo loop and feed hopper. The larger 215mm cutting tools enables larger volumes to be processed.

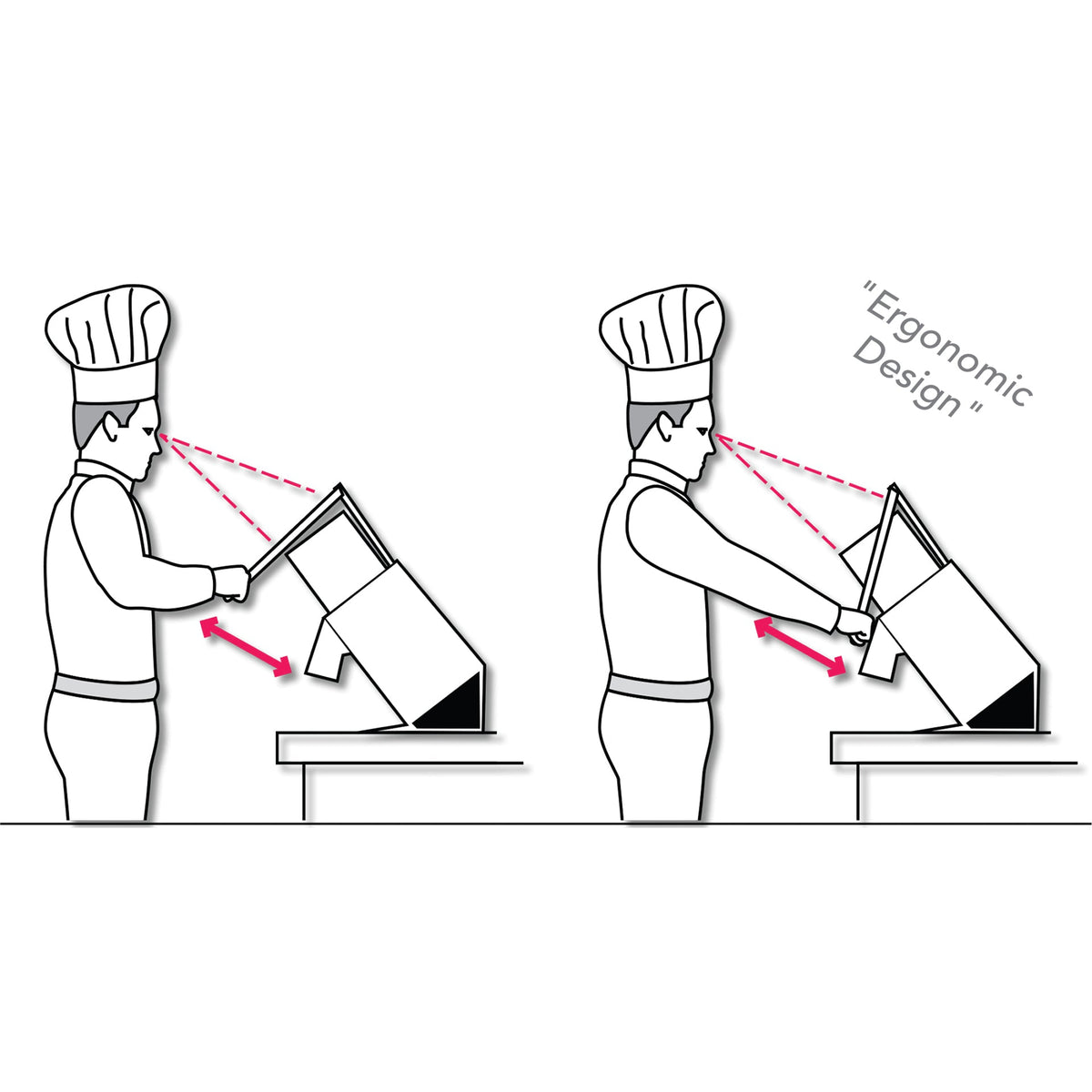

Ergonomics in all stages
The manual feeder ergo loop is equipped with Hallde Power Link which gives you a leverage effect from the pusher plate. This results in almost 50 percent less manual power. For a better working posture, the pusher plate has a looped designed handle, Hallde’s Ergo Loop, which means you can work with both your left and right hands. The leaning design means that the feed cylinder is always positioned at the right angle – the machine is easy to top up. We recommend our vertically adjustable machine table to ensure you always work at the right height when using the machine, especially when using the feed hopper.

Safe and quick top-ups
The machine stops as soon as the pusher plate is swung aside. When it is swung back, the machine restarts, and you can continue working thanks to an automatic start and stop function. This is particularly useful when preparing a large volume of produce.  The feed hopper is designed to deal with even larger volumes of round produce such as potatoes, onion, apples which can be fed into the feed hopper. The feed hopper shortens the process and no manual force is needed.

Double safety against unprotected cutting tools
If the feed cylinder is removed when the pusher plate is swung aside, cutting the power. Thanks to this double security there is no risk of the machine starting with an unprotected cutting tool.

Developed for the best hygiene
The RG-350 is manufactured solely from hygiene-certified material. The machine has smooth surfaces, rounded edges and has no unnecessary recesses where food might penetrate and get stuck.

Easy cleaning
For quick cleaning, all loose parts are simple to remove for easy rinsing of the machine. The pusher plate, feed hopper, and feed cylinder are removable and can be cleaned under running water.

Only the best material
Machine base, feed cylinder, and pusher plate are all made of robust metal. Only top-quality stainless steel is used to manufacture the cutting tool knife blades.

Highest possible reliability
The powerful motor has a high starting and running torque and powers the direct-driven cutting tool with no belts or intermediate connections. The power from the motor goes via a maintenance-free gear drive. This makes the RG-350 an exceptionally reliable machine – irrespective of the products you are preparing.

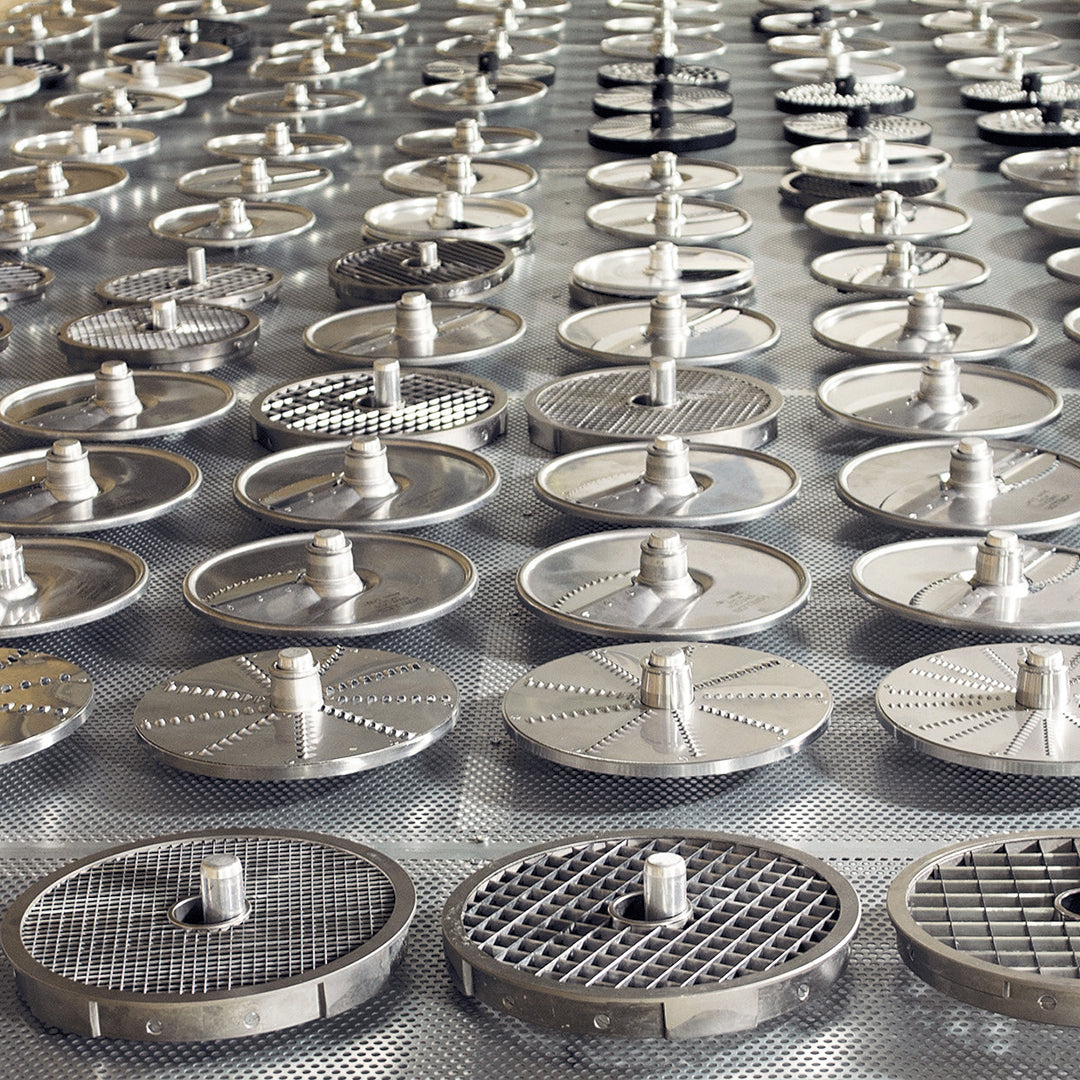

Cutting tools with complete register
You choose the cutting tool you need to improve efficiency throughout the kitchen. The RG-350 slices, dices, shreds, grates, cuts juliennes, crimping slices, and potato chips – everything from firm to soft products. The large 215 mm cutting tools enables faster processing. The knife blades and grating plates are replaceable, as a result, you do not need to buy new cutting tools when the blades are dulled.

Always perfect cutting results
The rotation speed of the cutting tools is optimised for cutting fine and even slices as efficiently as possible. The knife blades are purposely sharpened to avoid inertia or the edge breaking off.

Net weights
Machine base: 26 kg.
Manual push feeder: 6 kg.
Feed hopper: 7.5 kg.
Cutting plates: 1 kg.

Warranty Application Process
The extension application form must be completed and returned to Hallde within 30 days of purchase. Send the form, including a copy of your purchase invoice direct to Hallde in Sweden.

Model Details:

• Model Number — Description — Power — Current — Dimensions (w x d x h) (mm) — RRP AUD Ex GST
• RG-350 — Vegetable Preparation Machine — 750W — 10 Amp — See attached brochure — $9,503
• HA40871 — Continuous Feed Hopper Assembly includes Feed Cylinder — N/A — N/A — $3,656

Accessories & Cutting Tools:

** All cutting tools are dishwasher safe – Discs Ø 215 MM **

Please email us to order any additional cutting tools with your order.

• Model Number — Description — RRP AUD Ex GST
• RG-350 Accessories
• HA1076 — Wall Rack for 3 Plates/Grids — $ 49
• HA10037 — Cleaning Brush — $ 14
• HA40721 — Container Trolley, Stainless Steel, with handle, lockable wheels, adjustable level to suit gastronorm container 1/1-200. — $1,011
• HA25270 — Machine Table, Stainless Steel fits full gastronorm container — $910
• RG-350 Cutting Tools
• HA63082 — Slicer 0.5 mm – blade replaceable — $450
• HA63081 — Slicer 1 mm – blade replaceable — $450
• HA63023 — Slicer 1.5 mm – blade replaceable — $450
• HA63026 — Slicer 2 mm – blade replaceable — $450
• HA63045 — Slicer 3 mm – blade replaceable — $450
• HA63056 — Slicer 4 mm – blade replaceable — $450
• HA63083 — Slicer 5 mm – blade replaceable — $450
• HA63046 — Slicer 6 mm – blade replaceable — $450
• HA63084 — Slicer 7 mm – blade replaceable — $450
• HA63042 — Slicer 8 mm – blade replaceable — $450
• HA63085 — Slicer 9 mm – blade replaceable — $450
• HA63033 — Slicer 10 mm – blade replaceable — $450
• HA65040 — High Capacity Slicer 2 mm – double blades, blades replaceable — $959
• HA65045 — High Capacity Slicer 3 mm – double blades, blades replaceable — $959
• HA65041 — High Capacity Slicer 4 mm – double blades, blades replaceable — $959
• HA65042 — High Capacity Slicer 6 mm – double blades, blades replaceable — $959
• HA65043 — High Capacity Slicer 8 mm – double blades, blades replaceable — $959
• HA65044 — High Capacity Slicer 10 mm – double blades, blades replaceable — $959
• HA65018 — High Capacity Slicer 12 mm – double blades, blades replaceable — $959
• HA65021 — High Capacity Slicer 15 mm – double blades, blades replaceable — $959
• HA65024 — High Capacity Slicer 20 mm – double blades, blades replaceable — $959
• HA62320 — Fine Cut Slicer 14 mm – blade replaceable — $944
• HA62322 — Fine Cut Slicer 20 mm – blade replaceable — $944
• HA62573 — Soft Slicer 8 mm – blade replaceable — $488
• HA62575 — Soft Slicer 10 mm – blade replaceable — $488
• HA62577 — Soft Slicer 12 mm – blade replaceable — $488
• HA62579 — Soft Slicer 15 mm – blade replaceable — $488
• HA63343 — Crimping Slicer 3 mm – blade replaceable — $450
• HA63074 — Crimping Slicer 4 mm – blade replaceable — $450
• HA63345 — Crimping Slicer 5 mm – blade replaceable — $450
• HA63039 — Crimping Slicer 6 mm – blade replaceable — $450
• HA65060 — High Capacity Crimping Slicer 2 mm – double blades, blades replaceable (NEW models) — $962
• HA65061 — High Capacity Crimping Slicer 4 mm – double blades, blades replaceable (NEW models) — $962
• HA65063 — High Capacity Crimping Slicer 3 mm – double blades, blades replaceable (NEW models) — $962
• HA65062 — High Capacity Crimping Slicer 6 mm – double blades, blades replaceable (NEW models) — $962
• HA63212 — Julienne Cutter 2 x 2 mm – blade replaceable — $488
• HA63348 — Julienne Cutter 2 x 6 mm – blade replaceable — $488
• HA63349 — Julienne Cutter 3 x 3 mm – blade replaceable — $488
• HA63061 — Julienne Cutter 4 x 4 mm – blade replaceable — $488
• HA63065 — Julienne Cutter 6 x 6 mm – blade replaceable — $488
• HA63073 — Julienne Cutter 8 x 8 mm – blade replaceable — $488
• HA63080 — Julienne Cutter 10 x 10 mm – blade replaceable — $488
• HA65000 — High Capacity Julienne Cutter 2 x 2 mm – blade replaceable — $1,038
• HA65049 — High Capacity Julienne Cutter 2.5 x 2.5 mm – blade replaceable — $1,038
• HA65004 — High Capacity Julienne Cutter 4 x 4 mm – blade replaceable — $1,038
• HA65007 — High Capacity Julienne Cutter 6 x 6 mm – blade replaceable — $1,038
• HA65010 — High Capacity Julienne Cutter 8 x 8 mm – blade replaceable — $1,038
• HA65015 — High Capacity Julienne Cutter 10 x 10 mm – blade replaceable — $1,038
• HA62630 — Grater/Shredder 1.5 mm – blade replaceable — $450
• HA62631 — Grater/Shredder 2 mm – blade replaceable — $450
• HA62632 — Grater/Shredder 3 mm – blade replaceable — $450
• HA62633 — Grater/Shredder 4.5 mm – blade replaceable — $450
• HA62634 — Grater/Shredder 6 mm – blade replaceable — $450
• HA62635 — Grater/Shredder 8 mm – blade replaceable — $450
• HA62636 — Grater/Shredder 10 mm – blade replaceable — $450
• HA62637 — Fine Grater – blade replaceable — $450
• HA62639 — Hard Cheese Grater – blade replaceable — $450
• HA62638 — Fine Grater, Extra Fine – blade replaceable — $450
• Dicing Grids – use with appropriate slicers from above, as detailed below
• HA37177 — Dicing Grid 6 x 6 mm – use with 3 mm–6 mm Slicers or High Capacity Slicers — $1,052
• HA37178 — Dicing Grid 8 x 8 mm – use with 3 mm–8 mm Slicers, 8 mm Soft Slicer or 4-8mm High Capacity Slicers — $1,052
• HA37179 — Dicing Grid 10 x 10 mm – use with 3 mm–10 mm Slicers, 8 mm-10 mm Soft Slicers or 4-10mm High Capacity Slicers — $1,052
• HA37180 — Dicing Grid 12 x 12 mm – use with 3 mm–10 mm Slicers, 8 mm-10 mm Soft Slicers or 4-10mm High Capacity Slicers — $1,052
• HA37181 — Dicing Grid 12 x 12 mm Low – use with 12 mm Soft Slicer or 12mm High Capacity Slicer — $1,052
• HA37182 — Dicing Grid 15 x 15 mm – use with 3 mm–10 mm Slicers, 8 mm-10 mm Soft Slicers or 4-10mm High Capacity Slicers — $1,052
• HA37183 — Dicing Grid 15 x 15 mm Low – use with 12 mm-15 mm Soft Slicers or 14 mm Fine Cut Slicer, or 12-15mm High Capacity Slicers — $1,052
• HA37184 — Dicing Grid 20 x 20 mm – use with 3 mm–10 mm Slicers, 8 mm-10 mm Soft Slicers or 4-10mm High Capacity Slicers — $1,052
• HA37185 — Dicing Grid 20 x 20 mm Low – use with 12-15 mm Soft Slicers, 14-20mm Fine Cut Slicers or 12-20 mm High Capacity Slicers — $1,052
• HA37186 — Dicing Grid 25 x 25 mm – use with 3 mm-10 mm Slicers, 8 mm-10 mm Soft Slicers or 4 mm-10 mm High Capacity (HC) Slicers — $1,052
• HA37187 — Dicing Grid 25 x 25 mm Low – use with 12 mm-15 mm Soft Slicers, 14 mm-20 mm Fine Cut Slicer or 12 mm-20 mm High Capacity (HC) Slicers — $1,052
• HA37176 — Potato Chip Grid – use only with 10 mm Slicer, 10 mm Soft Slicer or 10 mm High Capacity (HC) Slicer — $1,052
• Recommended Cutting Tools with first purchase – RG-350
• Kit 7* — 2 Wall racks (HA1076), Slicer 1.5 mm (HA63023), Slicer 4 mm (HA63056), Slicer 6 mm (HA63046), Slicer 10 mm (HA63033), Grater/Shredder 4.5 mm (HA62633), Dicing Grid 10×10 mm (HA37179)
• Kit 8* — 3 Wall racks (HA1076), Slicer 1.5 mm (HA63023), Slicer 4 mm (HA63056), Slicer 6 mm (HA63046), Slicer 10 mm (HA63033), Julienne Cutter 4×4 mm (HA63061), Grater/Shredder 2 mm (HA62631), Grater/Shredder 8 mm (HA62635), Fine Grater (HA62637), Dicing Grid 10×10 mm (HA37179)
• *Individual items sold separately
