Product Description

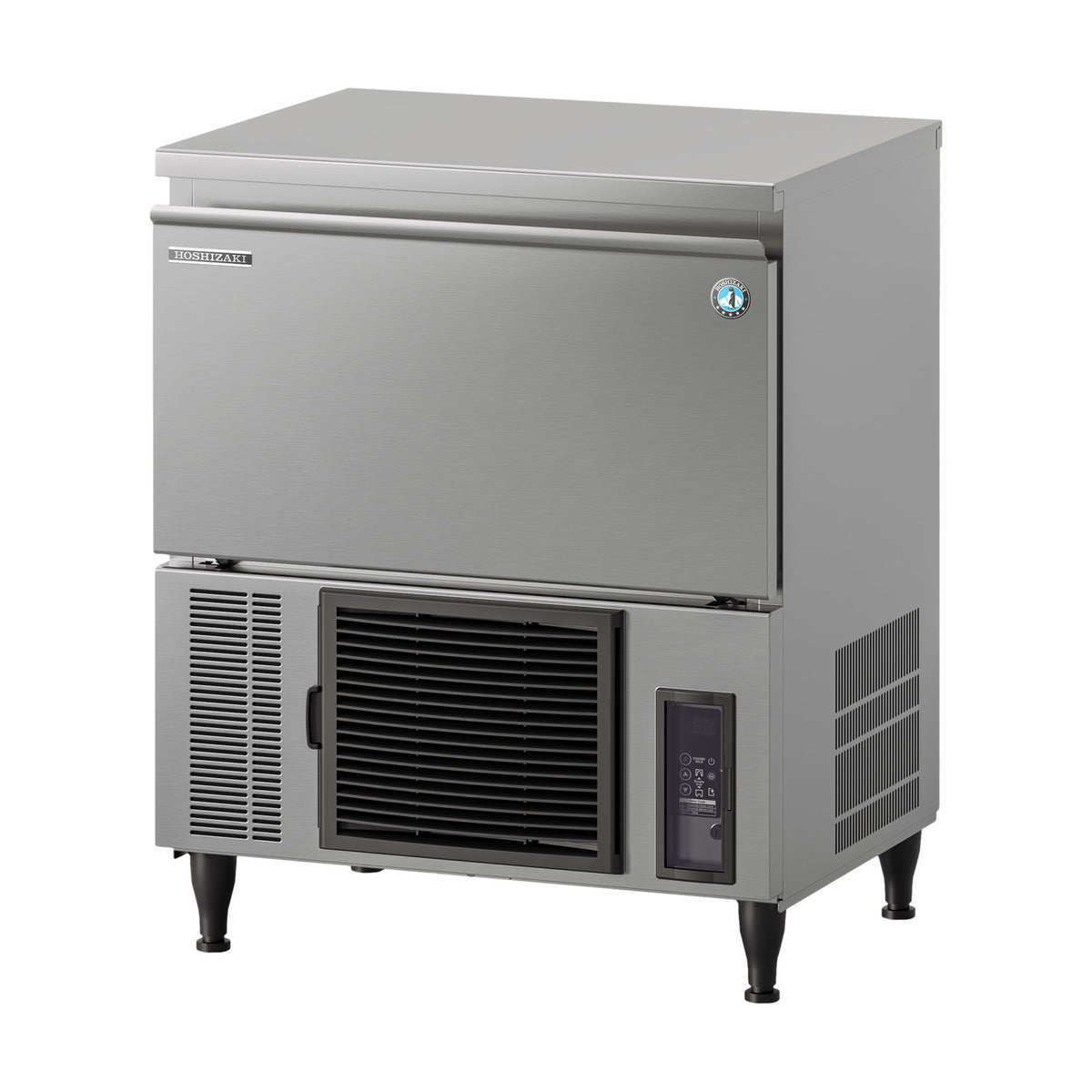

The Hoshizaki IM-45CPE-28-F is a self-contained cube ice machine with an integrated drain pump from the new-generation IM CUBE range. It makes up to 42kg of Hoshizaki's hard, slowly melting cubes every 24 hours and holds approx. 15kg in its bin.
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Product Features
- Sustainable & Efficient: Designed to minimize energy and water consumption, this unit features a variable-speed magnetic DC pump motor, eco-friendly R290 refrigerant, and a stand-by function. Premium foaming insulation and an optimized water tank reduce overall energy and water use.
- Durable & Hygienic Construction: A fully closed water circuit and closed cell system protect against contamination, while food-grade stainless steel (AISI 430) components and automated cleaning ensure long-lasting hygiene. An optional Scoop Holder-Kit adds extra sanitary convenience.
- Advanced Technology: Intelligent water flow adapts throughout the ice-making cycle to prevent chipped or cloudy cubes. Water circuit and condenser cleaning notifications, along with an adjustable control panel for dimple size, provide precise control and ease of monitoring.
- Smart & Long-Lasting Design: High-grade insulation, optimized motor performance, and individual cube forming ensure consistent ice quality and reliable long-term operation. Reduced mechanical stress extends the lifespan of internal components.
- Compact & Space-Saving: Efficient internal layout maximizes output within a small footprint. The removable water tank and DC pump simplify maintenance, while the internal drain pump allows flexible placement up to 10 meters from the drain and 1.5 meters in height.
- Plug & Play Installation: User-friendly controls, stand-by and wash buttons, and easily removable components enable quick setup, simple operation, and hassle-free maintenance.
Product Specifications

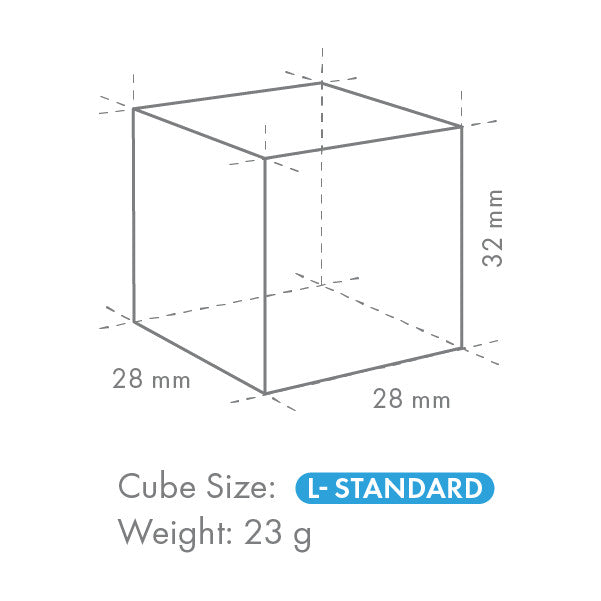

- Ice Size: 28mm x 28mm x 32mm cube (L-Standard), approx. 23g
- Drain Pump: Integrated
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
-
Production Capacity per 24 Hours: Approx. 42kg @10°C Air temp; 10°C Water
Approx. 36kg @ 21°C Air temp; 15°C Water
Approx. 29kg @ 32°C Air temp; 21°C Water - Max Storage Capacity: Approx. 15kg (Bin Control Setting Approx. 8kg)
- Dimensions: 633mm W x 511mm D x 780mm H
- Weight Net: 45kg
- Packed Weight: 55kg
- Cooling: Air
- AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 10 AMP Plug
- Amperage: Running: 1.6A Rated Motor: 1.6A Starting: 9A
- Refrigerant Charge: R290 / 70g
-
Operating Conditions: Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar)
Voltage Range: Rated Voltage ±6% - Electric Consumption: 255W
-
Water Consumption Per 24h: Approx. 0.11m³ @10°C Air temp; 10°C Water
Approx. 0.05m³ @ 21°C Air temp; 15°C Water
Approx. 0.04m³ @ 32°C Air temp; 21°C Water - Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 710W
- Accessories Included: Installation kit, Legs, Scoop
- Package Carton (W x D x H): 735mm x 570mm x 864mm
- GEMS Number: AIM0018
- Hoshizaki Item Number: 91000158
Additional Parts
- 87000148 HLF10G Water Filter Kit & Gauge
- 87000104 HLF10 Low capacity Water Filter System
- 87000106 HLFC100 320mm Replacement Cartridge
- 87000146 HLFC111 Water Filter
- 81000116 Stainless Steel Hose
Downloads
Warranty
- 3 years parts and labour on the entire unit
- 5 years parts and labour on the evaporator
- 5 years parts only on the compressor and air cooled condenser coil
- An extra 6 months when the ice machine is registered online with Hoshizaki within 4 weeks of purchase
