Product Description

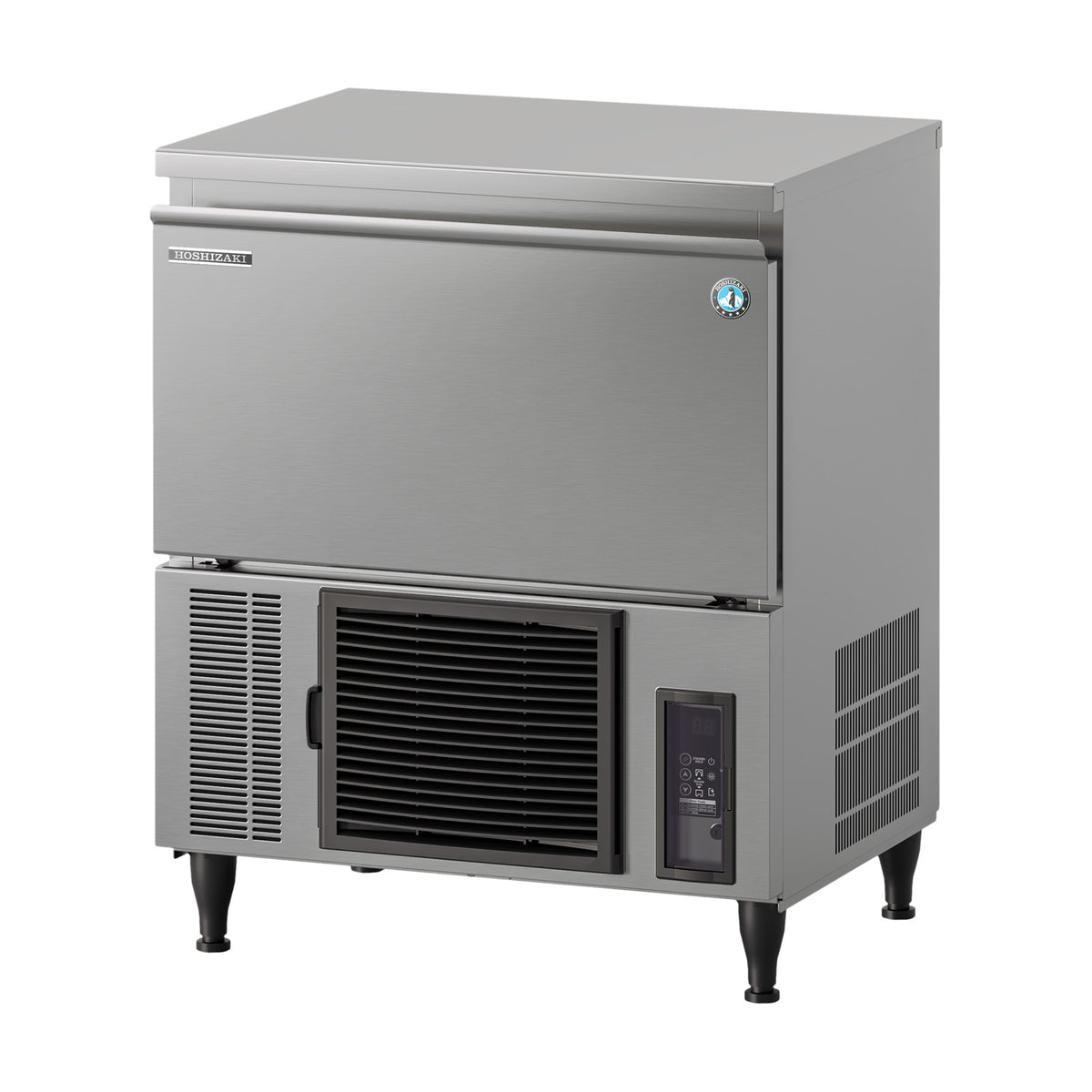

The Hoshizaki IM-45CPE-28 is a self-contained cube ice machine from the new-generation IM CUBE range. It makes up to 42kg of Hoshizaki's hard, slowly melting cubes every 24 hours and holds approx. 15kg in its bin.
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Product Features
- Sustainable & Efficient: Equipped with a variable-speed magnetic DC pump motor, eco-friendly R290 refrigerant, stand-by function, and premium foaming insulation for reduced energy consumption. The improved water tank design and smart motor control also help lower water usage.
- Durable & Hygienic Construction: A fully closed water circuit and closed cell system protect against contamination throughout the ice-making process. Food-grade stainless steel (AISI 430) components, reduced-wear motor technology, and automated cleaning ensure long-term durability and high hygiene standards. Optional Scoop Holder-Kit available.
- Advanced Technology: Intelligent water flow adapts to each phase of production to prevent chipped or cloudy ice. Cleaning notifications for the water circuit and condenser, along with an adjustable control panel for dimple size, provide enhanced monitoring and precision.
- Smart & Long-Lasting Design: High-grade insulation and optimized motor performance reduce mechanical stress while maintaining consistent, high-quality individual cube formation for reliable long-term operation.
- Compact & Space-Saving: Efficient internal design maximizes productivity within a compact footprint. The removable water tank and DC pump allow easy access without increasing space requirements.
- Plug & Play Installation: User-friendly controls, dedicated stand-by and wash buttons, and easily removable components ensure straightforward setup, operation, and maintenance.
Product Specifications

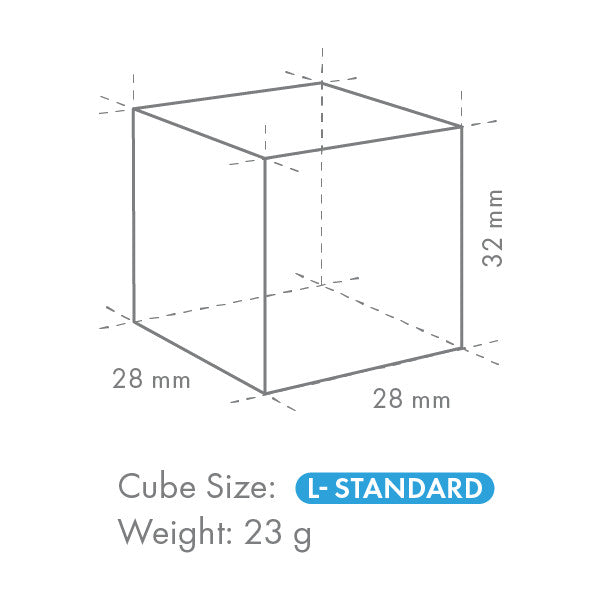

- Ice Size: 28mm x 28mm x 32mm cube (L-Standard), approx. 23g
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
-
Production Capacity per 24 Hours: Approx. 42kg @10°C Air temp; 10°C Water
Approx. 36kg @ 21°C Air temp; 15°C Water
Approx. 29kg @ 32°C Air temp; 21°C Water - Max Storage Capacity: Approx. 15kg (Bin Control Setting Approx. 8kg)
- Dimensions: 633mm W x 511mm D x 780mm H
- Weight Net: 44kg
- Packed Weight: 54kg
- Cooling: Air
- AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 10 AMP Plug
- Amperage: Running: 1.6A Rated Motor: 1.6A Starting: 9A
- Refrigerant Charge: R290 / 70g
-
Operating Conditions: Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar)
Voltage Range: Rated Voltage ±6% - Electric Consumption: 255W
-
Water Consumption Per 24h: Approx. 0.11m³ @10°C Air temp; 10°C Water
Approx. 0.05m³ @ 21°C Air temp; 15°C Water
Approx. 0.04m³ @ 32°C Air temp; 21°C Water - Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 710W
- Accessories Included: Installation kit, Legs, Scoop
- Package Carton (W x D x H): 735mm x 570mm x 864mm
- GEMS Number: AIM0018
- Hoshizaki Item Number: 91000157
Additional Parts
- 87000148 HLF10G Water Filter Kit & Gauge
- 87000104 HLF10 Low capacity Water Filter System
- 87000106 HLFC100 320mm Replacement Cartridge
- 87000146 HLFC111 Water Filter
- 81000116 Stainless Steel Hose
Downloads
Warranty
- 3 years parts and labour on the entire unit
- 5 years parts and labour on the evaporator
- 5 years parts only on the compressor and air cooled condenser coil
- An extra 6 months when the ice machine is registered online with Hoshizaki within 4 weeks of purchase
