Product Description

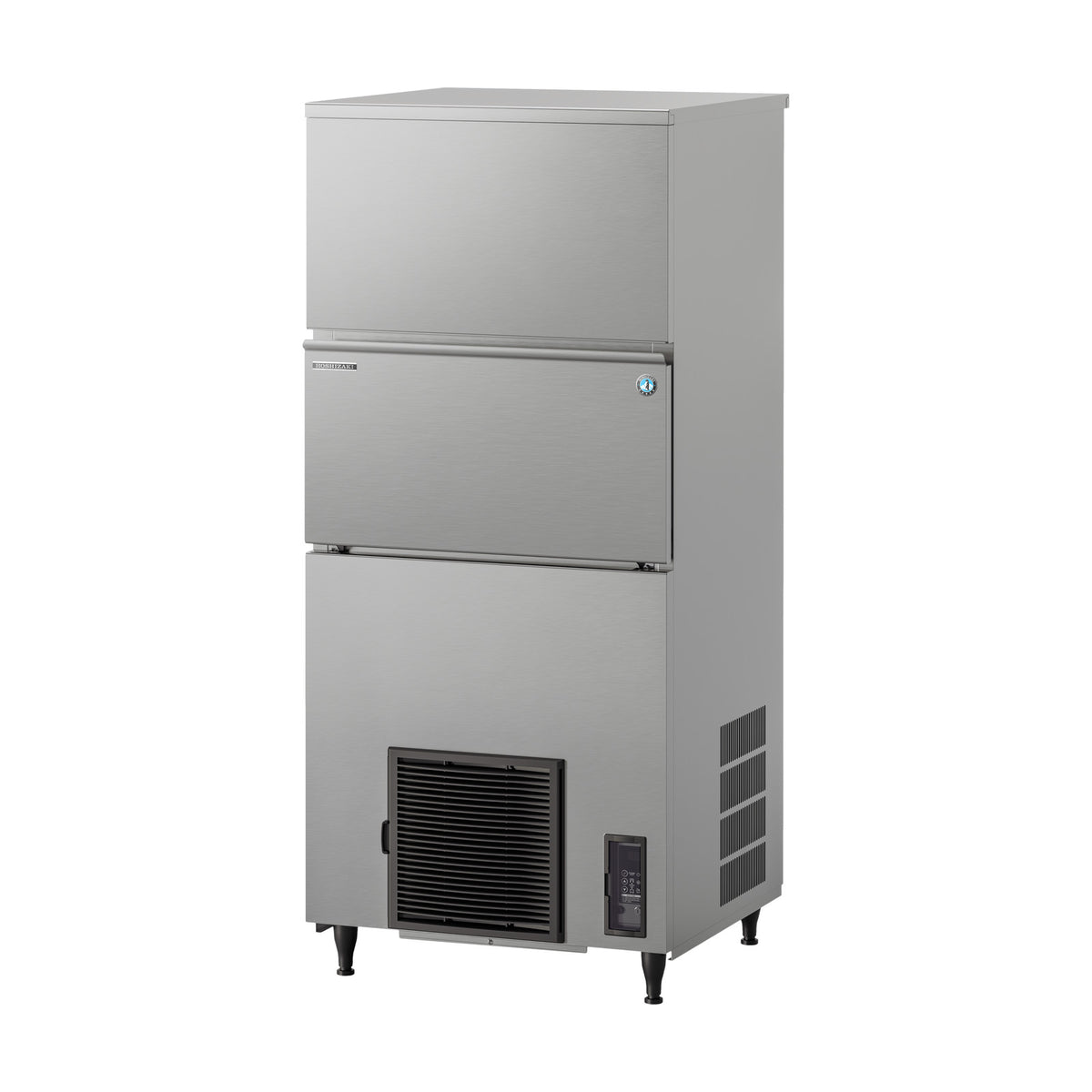

The Hoshizaki IM-240PE-28-F is a self-contained cube ice machine with an integrated drain pump from the new-generation IM CUBE range. It makes up to 195kg of Hoshizaki's hard, slowly melting cubes every 24 hours and holds approx. 110kg in its bin.
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Product Features
- Sustainable & Efficient: Uses eco-friendly R290 refrigerant and a variable-speed magnetic DC pump motor to reduce energy and water consumption. High-grade foamed insulation and a stand-by function further improve efficiency.
- Durable & Hygienic Construction: Closed water circuit protects against contamination, while food-grade stainless steel (AISI 430) components enhance durability. Automated cleaning and an optional scoop holder kit support food safety.
- Advanced Technology: Smart water flow control ensures clear, high-quality cubes, supported by a closed cell system for individual cube formation. Cleaning notifications and an adjustable control panel provide easy operation.
- Smart & Long-Lasting Design: Variable-speed pump technology reduces wear and tear, while removable components simplify maintenance and extend product lifespan.
- Compact & Space-Saving: Integrated internal drain pump allows flexible installation up to 10 m distance and 1.5 m height difference.
- Plug & Play Installation: Self-contained design with built-in drain pump enables quick, adaptable installation without complex plumbing.
Product Specifications

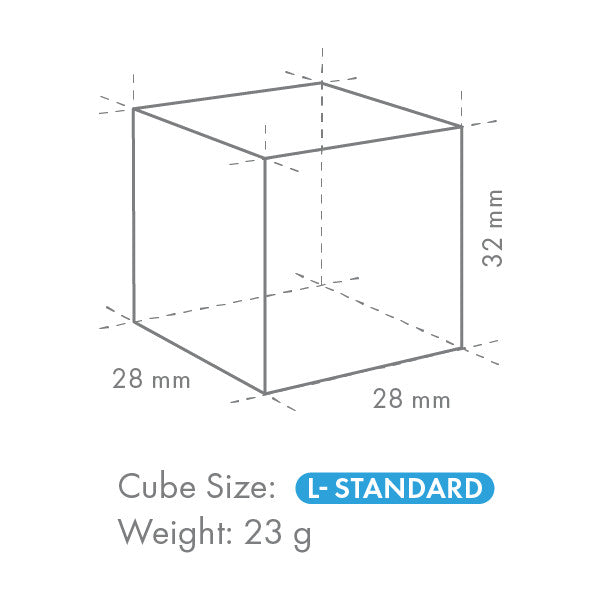

- Ice Size: 28mm x 28mm x 32mm cube (L-Standard), approx. 23g
- Drain Pump: Integrated
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
-
Production Capacity per 24 Hours: Approx. 195kg @10°C Air temp; 10°C Water
Approx. 180kg @ 21°C Air temp; 15°C Water
Approx. 160kg @ 32°C Air temp; 21°C Water - Max Storage Capacity: Approx. 110kg (Bin Control Setting Approx. 80kg)
- Dimensions: 704mm W x 665mm D x 1580mm H
- Weight Net: 109kg
- Packed Weight: 122kg
- Cooling: Air
- AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 10 AMP Plug
- Amperage: Running: 4.0A Rated Motor: 4.0A Starting: 27A
- Refrigerant Charge: R290 / 147g
-
Operating Conditions: Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar)
Voltage Range: Rated Voltage ±6% - Electric Consumption: 870W
-
Water Consumption Per 24h: Approx. 0.67m³ @10°C Air temp; 10°C Water
Approx. 0.32m³ @ 21°C Air temp; 15°C Water
Approx. 0.29m³ @ 32°C Air temp; 21°C Water - Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 2580W
- Accessories Included: Installation kit, Legs, Scoop
- Package Carton (W x D x H): 805mm x 760mm x 1684mm
- GEMS Number: AIM0022
- Hoshizaki Item Number: 91000170
Additional Parts
- 87000149 Filter System HLF20G W/gauge
- 87000105 Filter System HLF20 Complete
- 87000153 Filter System HLF22
- 87000107 Cartridge Replacement HLFC200
- 87000114 Cartridge Replacement HLFC222
- 81000116 Stainless Steel Hose
Downloads
Warranty
- 3 years parts and labour on the entire unit
- 5 years parts and labour on the evaporator
- 5 years parts only on the compressor and air cooled condenser coil
- An extra 6 months when the ice machine is registered online with Hoshizaki within 4 weeks of purchase
