Product Description

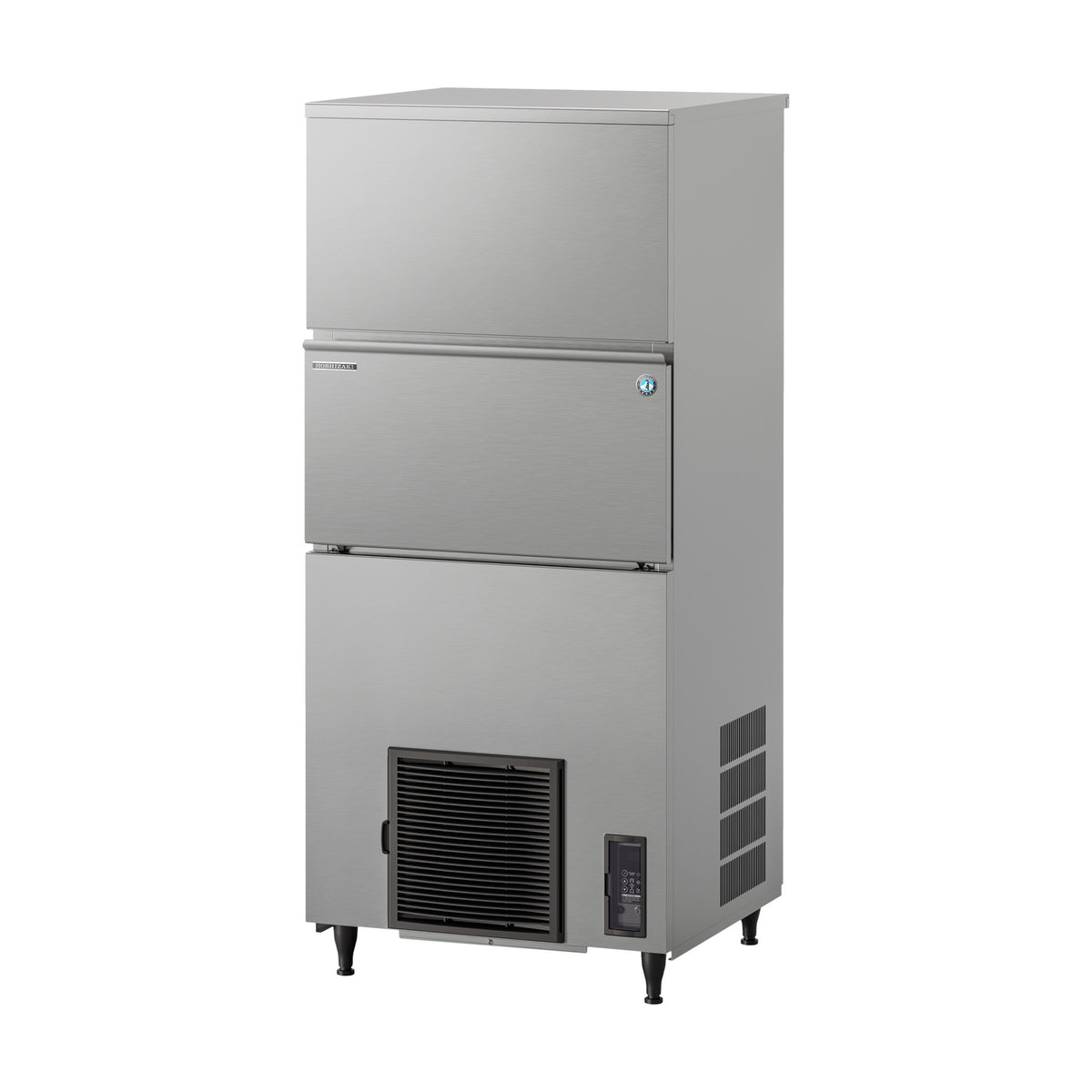

The Hoshizaki IM-240PE-23-F is a self-contained cube ice machine with an integrated drain pump from the new-generation IM CUBE range. It makes up to 165kg of Hoshizaki's hard, slowly melting cubes every 24 hours and holds approx. 110kg in its bin.
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Product Features
- Sustainable & Efficient: Designed with sustainability in mind, this model uses eco-friendly R290 natural refrigerant and a variable-speed magnetic DC pump motor to reduce both energy and water consumption. A stand-by function and high-performance foamed insulation further enhance overall efficiency.
- Durable & Hygienic Construction: A closed water circuit and Closed Cell System protect against contamination while ensuring individually formed, high-quality ice cubes. Automated cleaning, food-grade stainless steel components (AISI 430), and an optional scoop holder kit support maximum hygiene and long-term durability.
- Advanced Technology: Smart water-flow control automatically adjusts throughout the ice-making cycle to produce clear, consistent cubes. Built-in cleaning notifications for the water circuit and condenser, along with an adjustable dimple size control panel, provide added precision and control.
- Smart & Long-Lasting Design: Premium internal components and advanced motor technology reduce wear and extend the unit’s lifespan. The easily removable water tank and DC pump simplify maintenance and servicing.
- Compact & Space-Saving: An integrated drain pump allows flexible installation up to 10 meters horizontally and 1.5 meters vertically, making it ideal for locations where space or drain positioning is limited.
- Plug & Play Installation: With a built-in drain pump and user-friendly control panel, installation and setup are straightforward, allowing the unit to be operational quickly and efficiently.
Product Specifications

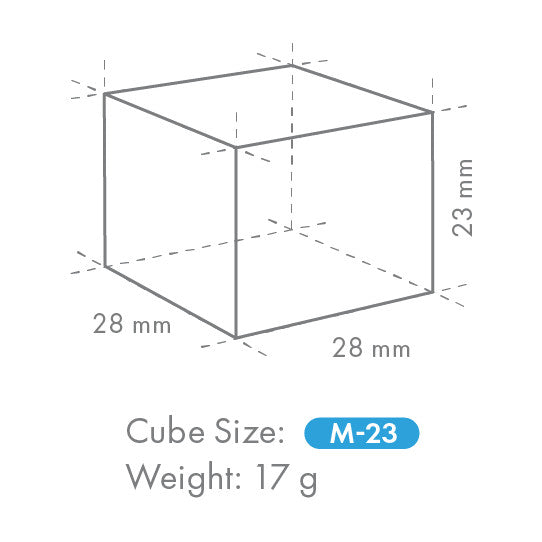

- Ice Size: 28mm x 28mm x 23mm cube (M-23), approx. 17g
- Drain Pump: Integrated
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
-
Production Capacity per 24 Hours: Approx. 165kg @10°C Air temp; 10°C Water
Approx. 145kg @ 21°C Air temp; 15°C Water
Approx. 140kg @ 32°C Air temp; 21°C Water - Max Storage Capacity: Approx. 110kg (Bin Control Setting Approx. 80kg)
- Dimensions: 704mm W x 665mm D x 1580mm H
- Weight Net: 102kg
- Packed Weight: 115kg
- Cooling: Air
- AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 10 AMP Plug
- Amperage: Running: 3.8A Rated Motor: 3.8A Starting: 27A
- Refrigerant Charge: R290 / 147g
-
Operating Conditions: Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar)
Voltage Range: Rated Voltage ±6% - Electric Consumption: 870W
-
Water Consumption Per 24h: Approx. 0.68m³ @10°C Air temp; 10°C Water
Approx. 0.37m³ @ 21°C Air temp; 15°C Water
Approx. 0.36m³ @ 32°C Air temp; 21°C Water - Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 2580W
- Accessories Included: Installation kit, Legs, Scoop
- Package Carton (W x D x H): 805mm x 760mm x 1684mm
- GEMS Number: AIM0029
- Hoshizaki Item Number: 91000168
Additional Parts
- 87000148 HLF10G Water Filter Kit & Gauge
- 87000104 HLF10 Low capacity Water Filter System
- 87000106 HLFC100 320mm Replacement Cartridge
- 87000146 HLFC111 Water Filter
- 81000116 Stainless Steel Hose
- 96000006 18D Top Kit
- 96000007 8D Top Kit
Downloads
Warranty
- 3 years parts and labour on the entire unit
- 5 years parts and labour on the evaporator
- 5 years parts only on the compressor and air cooled condenser coil
- An extra 6 months when the ice machine is registered online with Hoshizaki within 4 weeks of purchase
