Product Description

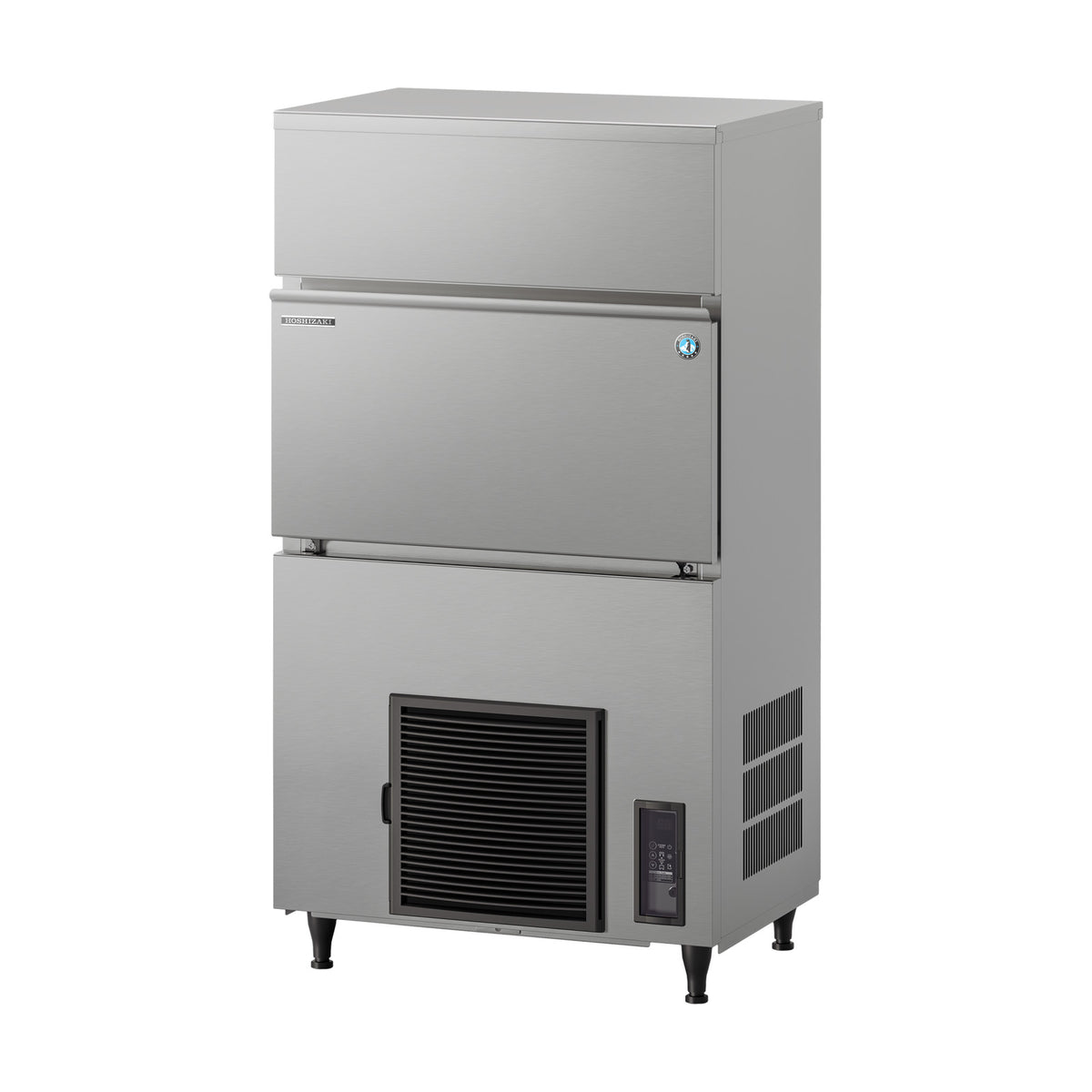

The Hoshizaki IM-130PE-28-F is a self-contained cube ice machine with an integrated drain pump from the new-generation IM CUBE range. It makes up to 109kg of Hoshizaki's hard, slowly melting cubes every 24 hours and holds approx. 50kg in its bin.
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Product Features
- Sustainable & Efficient: Equipped with R290 natural refrigerant and a magnetic DC pump motor with variable speed, the unit optimises energy and water consumption. High-grade foamed insulation and a stand-by function further enhance operational efficiency while reducing environmental impact.
- Durable & Hygienic Construction: A closed water circuit system ensures maximum protection against contamination throughout the cubing process. Food-grade stainless steel components (AISI 430) minimise wear and extend service life, while automated cleaning and an optional scoop holder kit support enhanced hygiene and food safety.
- Advanced Technology: The intelligent DC pump motor with smart water flow control adapts to each stage of the ice-making cycle, preventing chipped or cloudy cubes. The closed cell system with individual cube forming guarantees consistently clear, high-quality ice.
- Smart, Long-Lasting Design: Designed for reliability, the machine features automated cleaning, water circuit and condenser cleaning notifications, durable foamed insulation, and precision-engineered internal components to reduce wear and tear.
- Compact & Space-Saving: A self-contained configuration delivers powerful output within a compact footprint, making it ideal for professional kitchens and bars where space is limited.
- Plug & Play Installation: An integrated internal drain pump allows flexible positioning up to 10 metres horizontally and 1.5 metres vertically, overcoming traditional drain restrictions. An intuitive control panel with adjustable dimple size and easily removable water tank and DC pump components ensure straightforward installation, operation, and maintenance.
- Increased Water Saving: The variable-speed magnetic DC pump motor and improved water tank design reduce overall water consumption without compromising ice production performance.
Product Specifications

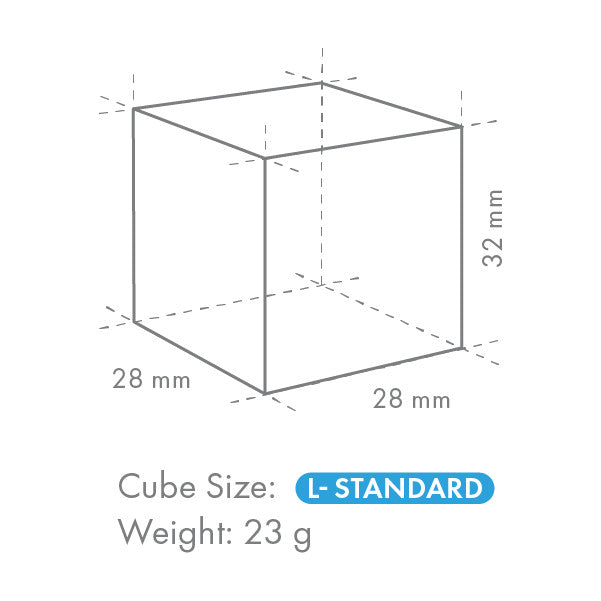

- Ice Size: 28mm x 28mm x 32mm cube (L-Standard), approx. 23g
- Drain Pump: Integrated
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
-
Production Capacity per 24 Hours: Approx. 109kg @10°C Air temp; 10°C Water
Approx. 102kg @ 21°C Air temp; 15°C Water
Approx. 91kg @ 32°C Air temp; 21°C Water - Max Storage Capacity: Approx. 50kg (Bin Control Setting Approx. 28kg)
- Dimensions: 704mm W x 506mm D x 1280mm H
- Weight Net: 72kg
- Packed Weight: 82kg
- Cooling: Air
- AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 10 AMP Plug
- Amperage: Running: 4.3A Rated Motor: 4.3A Starting: 19A
- Refrigerant Charge: R290 / 140g
-
Operating Conditions: Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar)
Voltage Range: Rated Voltage ±6% - Electric Consumption: 565W
-
Water Consumption Per 24h: Approx. 0.47m³ @10°C Air temp; 10°C Water
Approx. 0.21m³ @ 21°C Air temp; 15°C Water
Approx. 0.18m³ @ 32°C Air temp; 21°C Water - Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 1450W
- Accessories Included: Installation kit, Scoop
- Package Carton (W x D x H): 805mm x 580mm x 1375mm
- GEMS Number: AIM0005
- Hoshizaki Item Number: 91000166
Additional Parts
- 87000148 HLF10G Water Filter Kit & Gauge
- 87000104 HLF10 Low capacity Water Filter System
- 87000106 HLFC100 320mm Replacement Cartridge
- 87000146 HLFC111 Water Filter
- 81000116 Stainless Steel Hose
Downloads
Warranty
- 3 years parts and labour on the entire unit
- 5 years parts and labour on the evaporator
- 5 years parts only on the compressor and air cooled condenser coil
- An extra 6 months when the ice machine is registered online with Hoshizaki within 4 weeks of purchase
