Product Description

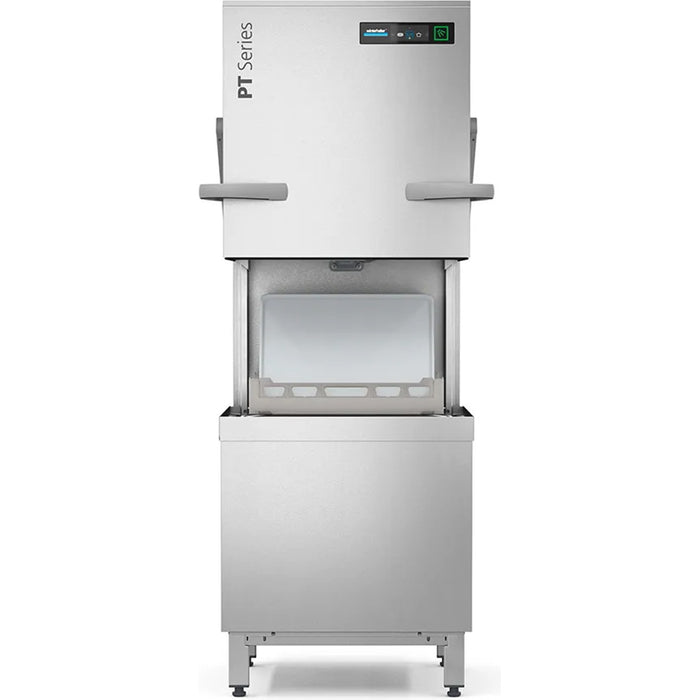

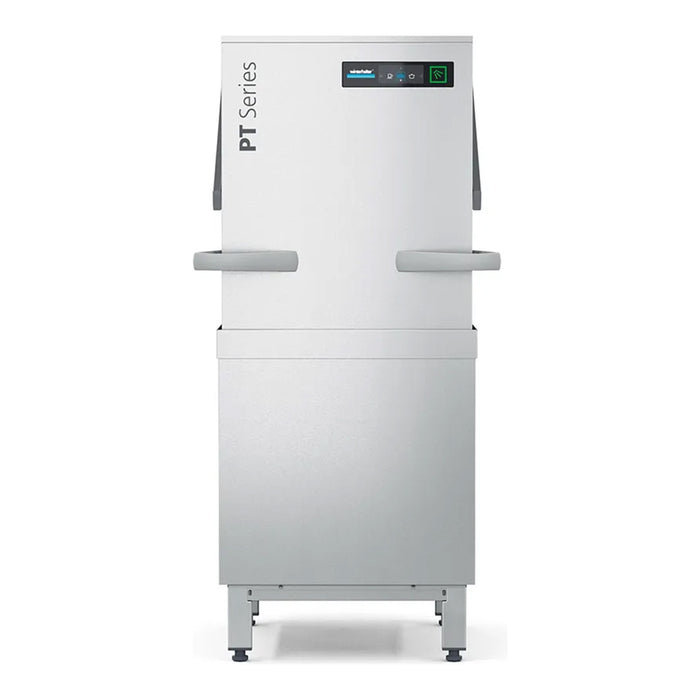

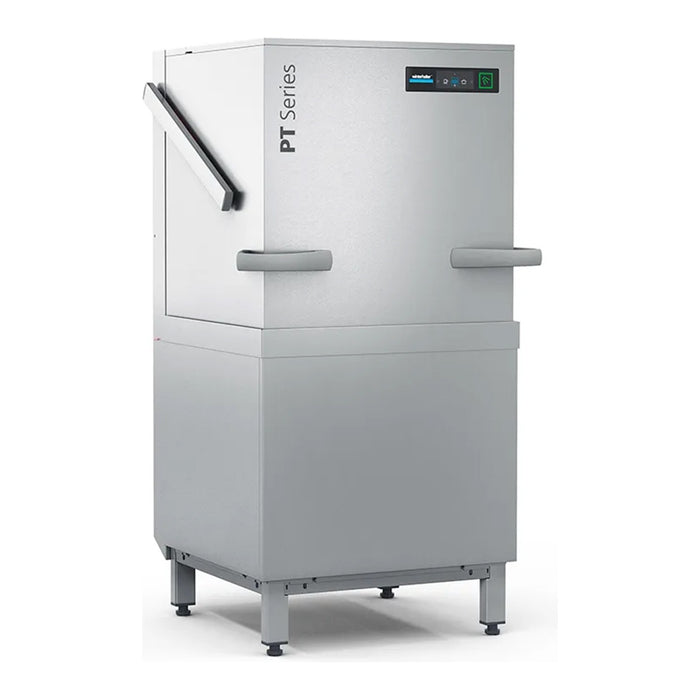

The Winterhalter PT-L is the wide hood-type dishwasher in the PT range, with a cabinet 100 mm wider than the PT-M and a larger wash pump, so large plates and trays go through on the same 440 mm entry height.
Product Features
- 100 mm wider cabinet than the PT-M (735 mm against 635 mm), with a 1.5 kW wash pump
- 440 mm clear entry height; 35 litre wash tank
- EnergyLight waste-water heat recovery fitted as standard, for up to 10% energy saving
- Smart touch display, single-button operation, language-neutral pictogram interface
- S-shaped wash fields top and bottom, with VarioPower wash-pressure adjustment
- Quadruple filtration and a clouding sensor
- Hood start, plus a timer for automatic start-up and close-down
- Chemical dosing pumps, rinse booster pump and drain pump all standard
- Connected Wash digital connectivity fitted as standard
- PT-L Energy: Adds exhaust-air heat recovery on top of the standard EnergyLight waste-water recovery. The module sits on the hood and takes the machine to 2,225 mm - 640 mm taller than the standard PT-L - so check the doorway and ceiling before ordering.
- PT-L Utensil: Set up for pots, pans and utensils rather than crockery, with the wash system and programmes to match.
- PT-L Utensil Energy: The utensil machine with exhaust-air heat recovery added. It stands 2,225 mm tall, 690 mm more than the standard PT-L Utensil - check the doorway and ceiling.
Product Specifications
- Rack size: 500 x 500 mm (two racks supplied)
- Clear entry height: 440 mm
- Tank capacity: 35 litres
- Capacity: 45 / 32 / 22 racks per hour on the standard programme
- Power (standard): 415 V three phase 50 Hz, 20 amp, 9.7 kW total connected load
- Power (optional): 415 V three phase 50 Hz, 25 amp / 11.5 kW or 32 amp / 15.7 kW
- Wash pump: 1.5 kW
- Tank heating: 2.5 kW
- Material: Stainless steel interior & exterior
- Country of origin: Germany
- PT-L: 735 mm W x 750 mm D x 1,585 mm H hood closed / 2,060 mm hood open, 158 kg packed (142 kg nett)
- PT-L Energy: 735 mm W x 750 mm D x 2,225 mm H, 187 kg packed (163 kg nett)
- PT-L Utensil: 735 mm W x 750 mm D x 1,535 mm H hood closed / 2,010 mm hood open, 158 kg packed (142 kg nett)
- PT-L Utensil Energy: 735 mm W x 750 mm D x 2,225 mm H, 187 kg packed (163 kg nett)
Downloads
Warranty
Two years parts and labour.
