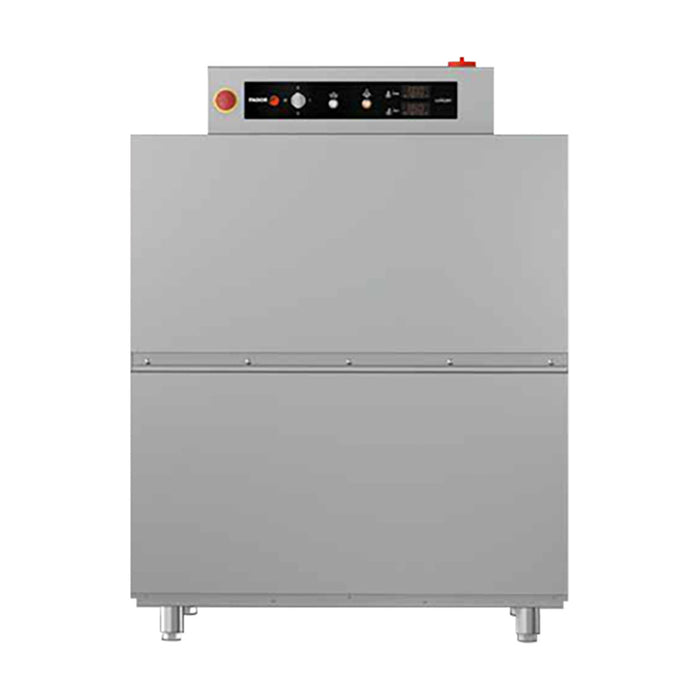

Fagor Electric Conveyor Dishwasher Left Entrance - CCO-120ICW

Electric Conveyor Dishwasher Left Entrance - CCO-120ICW

• All the main parts are manufactured in AISI-304 anti-corrosion stainless steel: tanks, washing and rinsing arms, rinsing jets, doors, basket conveyance system, boiler and metal tubes.
• Upwards-opening double panel door.
• Tank tray filters made of AISI-304 stainless steel, easy to access and remove for cleaning and access to the tank.
• Safety filter for pump suction.
• Rinsing boiler with heat insulation.
• Easy access for installation. Electrovalve located on one side (no need to remove panels to connect the machine).
• Electrical panel designed for easy connection of dosers for liquid and solid detergents, rinse aid, limit switches, supplementary emergency stop button.
• Washing arms easily removable as a set, for cleaning, with a plug on each branch providing access for cleaning inside.
• Rinse jets easily dismountable and removable.
• System of electronic regulation of speeds by means of frequency shifter.
• Configurable electronic temperature control:
  - Wash (50 - 65 °C)
  - Rinse (70 - 85 °C)
• Guarantor of rinse at 85 °C.
• Pressure regulator for flow control.
• Emergency stop button incorporated.
• Extra anti-entrapment protection system at the entrance, mounted on the AS-260 splash guard supplement (optional).
• Open door blocking system.
• IPX4 protection system.
• System for detection of blockage of conveyor carriage and automatic reverse function.
• High-power washing system with 4 upper and 4 lower washing branches.
• 3 washing programs: deep, medium and high capacity.
• Double effect rinse.
• Energy-saving system: reduces consumption by halting operation of the pumps, and by passing the heating of the rinse to stand-by mode (70 °C).
• Auto-timer which deactivates the conveyor motor after a pre-set period of inactivity (10 minutes).
• Energy saving system in the wash: the wash does not start up until it
  detects the passage of the basket.
• Rinse saving system. The rinse stops when the basket has left, saving water and energy.
• Model prepared for entrance of baskets from the left side.
• Model prepared for a cold water connection inlet (Inlet temperature < 50ºC)
• Equipment included:
  2 base baskets, CT-10
  2 baskets for plates CP-16/18, 1 basket for
  glasses CV-16/105, 1 basket for cutlery CT-10 R
  Limit switch included.

2 Years Parts and Labour Warranty

Product Specifications

• Product Dimensions (W x D x H mm): 1180 x 790 x 1560
• Shipping Dimensions (W x D x H mm): 1530 x 955 x 1950
• Net Weight: 211kg
• Power: 50Hz, 400V - 3 Phase, 26.55kW,
